| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DP8500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Power Supply: | DC 5V@470mA(work) |
|---|---|---|---|
| Scan Mode: | Auto Sense | Scan Angle: | Roll±360°, Pitch±45°, Skew±32°（PCS90%, Code 39, 10mil/0.25mm） |
| Communication Way: | HID USB, USB Virtual COM, RS232 | Resolution: | ≥5mil/0.127mm(PCS90%,Code 39) |
| Decoding Speed: | 10CM/S | Light Source: | Red Light |
| Print Contrast Signal: | ≥25% | Interface: | USB |
| High Light: | laser handheld scanner,omni directional barcode reader |
||

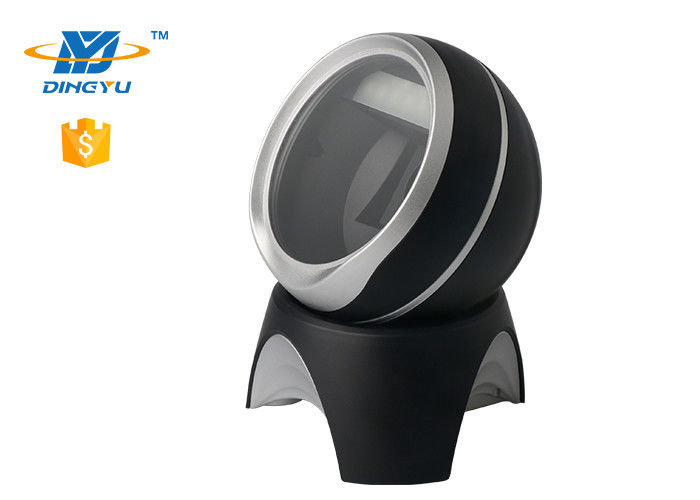

Omnidirectional QR Code Barcode Scanner 2D Platform Pos Scanning Hand Free
Description
DP8500 is a stylish desktop two-dimensional image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system.
Can easily read paper, goods, screens and other media on the one-dimensional code, two-dimensional code, strong reading performance.
DP8500 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and is suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.
☆ Mini design.
☆ can easily read bar codes above 5MIL to meet the needs of daily scanning.
☆ 2d imaging technology, paper, printing, plastic, screen barcode can be easily read.
Parameter
| Physical Parameter | |
| Weight | 190g ( Without cable) |
| Dimension | 92.33mm L *84.74mm W * 124.61mm H |
| Interface type | USB, RS232 |
| Communication way | TTL-232 , USB (HID-KBW,USB-COM) |
| Power supply | DC 5V@470mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Aiming: 617 nm LED ; illumination:6500K LED |
| CPU | 32-bit |
| Optical Resolution | 640*480 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Scan speed | 10cm/s |
| Depth of field | 0-300mm |
| Scan mode | Auto sense |
| Scan angle | Roll360°, Pitch±45°, Skew±32° |
| Print contrast signal | ≥25% |
| Ambient light | Dark, Indoor natural light |
| Symbologies |
1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Transport vibration Test | 10H@125RPM |
| Accessories List | |
| Data cable | USB cable, used to connect the DP8500 and the information receiving host. |
| RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable. |
| Weight | ≈265g(No Cable) |
| Dimension | (L)85mm * (W)92.5mm *(H)125mm |
| Communication Mode | USB,RS232 |
| Interface Type | USB,DB9 |
| Power Supply | DC 5V@450mA(work) |
Application:
Advantages:
1.Use the latest high-performance hardware decoding chip to decode various complex 1D barcodes
2.Support automatic sleep and wake-up function to improve working life of core component
3.New and stylish appearance, swivel base for a variety of scanning applications
4.Super cool blue and red two-color LED indicator and double beeper sound to deal with various noisy environments
5.Support multiple communication interfaces, plug and play, and automatically match the device automatically
6.Applications: Mainly used in large supermarkets, shopping malls, specialty stores (pharmacies, clothing stores, smoke hotels, jewelry stores), etc.
FAQ:
Q:Can I make a trial or sample order before mass ordering?
A: Yes,sure.
Q: How can i print my logo ? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1-3 years warranty since buying from us.
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have.
