| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DF5200-2D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Paper box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Product Name: | DF5200-2D | Net Weight: | <80g ( Not Including Cable) |
|---|---|---|---|
| Product Dimension: | 51.79mm L * 48.79mm W * 23.5mm H | Communication Way: | USB, RS232 |
| Power Scan Type: | CMOS | Resolution: | 1D：≥3mil，2D：≥8.7mil @PCS90% |
| Scan Tolerance: | 25cm/s | Scan Mode: | Auto Scan, Continuous. Manual |
| Scan Angle: | Roll：±360°, Pitch：±60°, Yaw：±55° | Depth Of Field: | 30-550mm |
| High Light: | 25cm/s Fixed Mount Scanner,CCD CMOS Fixed Mount Scanner,200mA Fixed Barcode Scanner |
||

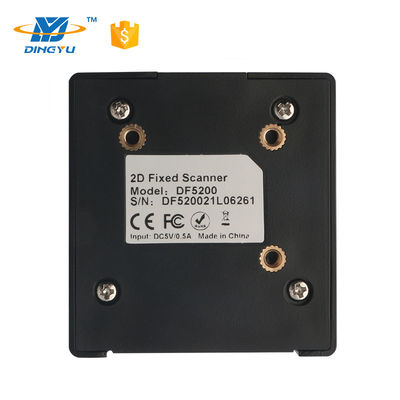

USB RS232 1D 2D QR Code PDF417 reader Reader Kiosk Fixed Mount Barcode Scanner DF5200-2D
Product introduction
DF5200 is a high performance fixed mount scanner with infrared sensors.
It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes. Compact design, can be easily embedded in all kinds of equipment.
Widely used in various self-service machines, dim-lit working environment, etc.
Product data sheet
☆ Simple structure, widely used in self-service selling machines.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High-performance processor, fast decoding.
☆ Support dark environment scanning.
☆ Interface: USB and RS232, can be switched by cable and setting code.
| ▅ Lockers | ▅ Self-service terminals |
| ▅ Medical research | ▅ Self-service vending machines |
| ▅ Lottery machines | |
| ▅ Queuing calling equipment |
| Scan Type | CMOS |
| Light Source | Illumination: white LED, gradual illumination aiming with distance; red LED, wavelength 525nm) |
| CPU | 32-bit |
| Resolution | 300,000 pixel, 640*480 |
| Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Depth of field | 30mm~550mm(Different barcode range) |
| Scan Mode | Trigger, Auto sense, Continuous |
| Scan angle | Roll±360°, Pitch±60°, Skew±55°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7), MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban Brazil Bank Code,GS1 Composite, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Japan post, Postnet, etc. |
| Weight | <80g ( not including cable) |
| Dimension | 51.79mm L * 48.79mm W * 23.5mm H |
| Communication Mode | USB(USB-KBW,USB-COM,USB-HID), RS232 |
| Interface Type | USB and RS232 ( can be switched by cable and setting code) |
| Power Supply | DC5V, decoded average current:200mA |
RFQ:
Q1. What’s your main products ?
- Laser Barcode Scanner
- Image CCD CMOS Barcode Scanner
- Barcode module
- Portable barcode scanner
- Handheld barcode scanner
- Desktop/flatbed barcode reader
- Ring type barcode reader
Q2. Are you a manufacturer?
Yes, our factory is located in Dongguan .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4. What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1. Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
