| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5300 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 220mm L * 100mm W * H80mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 0.16kg | Dimension: | L175mm * W72mm * H100mm |
|---|---|---|---|
| Scan Type: | Laser | Depth Of Field: | 10mm-250mm |
| CPU: | 32-bit | Decoding Speed: | 300 Times / S |
| High Light: | laser qr code scanner,laser wireless barcode scanner |
||

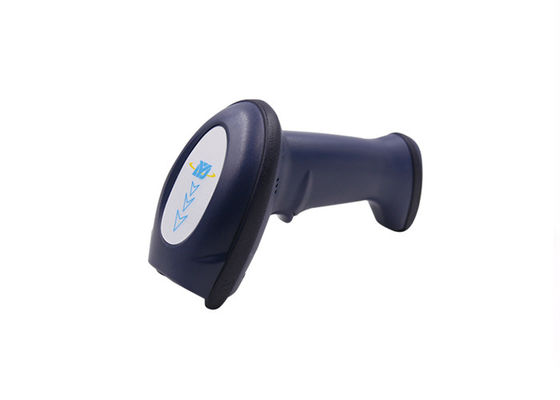

Typical Products Universial USB Handheld Laser Barcode Scanner 32-bit
Product Description
DS5300 is a high-performance 1D barcode scanner with leading laser scanning technology. It can easily read the paper, goods and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using.
☆ High-performance LED instructions and buzzers, clear and visual.
☆ Read all the mainstream 1D codes in the market easily.
☆ High-performance processor, fast decoding.
☆ Support multiple systems and languages.
☆ Support interface: USB.
Application
▅ Supermarket ▅ Warehouse
▅ Retail chain ▅ Health care
▅ Courier
| Physical Parameter | |
| Weight | ≈160g(without cable) |
| Dimension | L175mm * W72mm * H100mm |
| Interface Type | USB |
| Communication way | USB |
| Power supply | DC 5V@80mA(work) |
| Performance | |
| Scan type | laser |
| Light source | Visible red diodes,650±10nm |
| CPU | 32-bit |
| Security Level | National laser diode safety rating |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300 times / s |
| Depth of field | 10mm-250mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll±30°,Pitch±50°,Skew±50°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥25% |
| Ambient light | Indoor natural light |
| Symbologies | EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, CODE 39, CODE 93, CODE128, Codabar, GS1-128, Interleaved 2 of 5,MSI, ISBN/ISSN, ISBT, etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 4MIL | 10-70mm (PCS90%,Code 39) |
| 13MIL | 10-220mm (PCS90%, EAN-13) |
| 20MIL | 30-250mm (PCS90%,Code 39) |
| 40MIL | 60-240mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-3weeks. It depends on product.
Q: Do you provide samples ? is it free or extra ?
A: No, we could offer a small amount of sample for free charge but do not pay the cost of freight.
Q: What is your MOQ?
A: One.
Our Service
1. Your inquiry will be replied within 24 hours.
2. OEM are highly welcomed.
3. Our cooperating shipping agent will offer you the best shipping price.
4. The order will be produced exactly according to order details and proofed samples.
5. Your business relationship with us will be confidential to any third party.
6. Our staffs are ready to give our sincere service to you.
