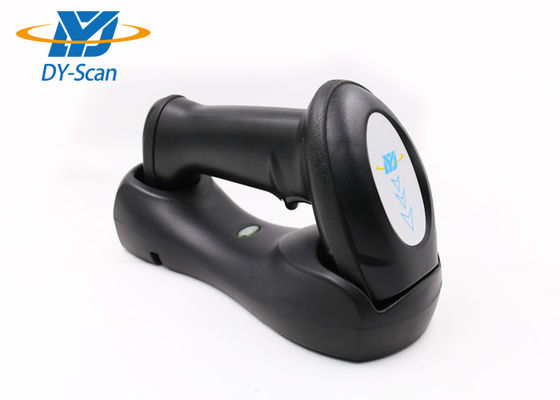

Light Weight 1D Usb Barcode Scanner With Stand DC 5V Power Supply Fast Decoding DS5200G

Light Weight 1D Usb Barcode Scanner With Stand DC 5V Power Supply Fast Decoding DS5200G

Light Weight 1D Usb Barcode Scanner With Stand DC 5V Power Supply Fast Decoding DS5200G

Product Details:

Place of Origin: China
Brand Name: DYscan
Certification: FC CE ROHS
Model Number: DS5200G

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 90
Delivery Time: 5
Payment Terms: T/T, Western Union
Supply Ability: 10000
Detailed Product Description
Weight: 160g Dimension: L175mm * W72mm * H100mm(Scanner)
Interface Type: USB Communication Way: USB , Wireless 2.4GHz
Power Supply: DC 5V@100mA Scan Type: CCD
CPU: 32-bit Resolution: ≥3mil

DS5200G 300times/s Decoding speed 1D Wireless Barcode Scanner Pedestal DC 5V Power supply



Product Description

DS5200 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.



Features

☆ Ergonomic Industrial design, comfortable using.

☆ Read all mainstream 1D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ Support multiple systems and languages.

☆ Interface: USB.

☆ Widely used in supermarket, mobile payment, industry manufacturing, inventory management.



Application

▅ Supermarket           ▅ Warehouse

▅ Mobile payment       ▅ Retail chain

▅ Courier                    ▅ Health care



Physical Parameter
Weight ≈160g(without cable)
Dimension L175mm * W72mm * H100mm
Interface Type USB
Communication way USB(USB-KBW,USB-COM)
Power supply DC 5V@80mA(work)
Performance
Scan type Linear CCD
Light source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.1mm(PCS90%,Code 39)
Decoding speed 300 times/s
Depth of field 10mm-600mm
Scan mode Manual, Continuous, Auto sense
Scan angle Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark,indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 60-100mm (PCS90%,Code 39)
13MIL 10-320mm (PCS90%,EAN-13)
20MIL 10-430mm (PCS90%,Code 39)
40MIL 110-600mm (PCS90%,Code 39)
Accessories list
Data cable USB, connect the scanner to a host device
