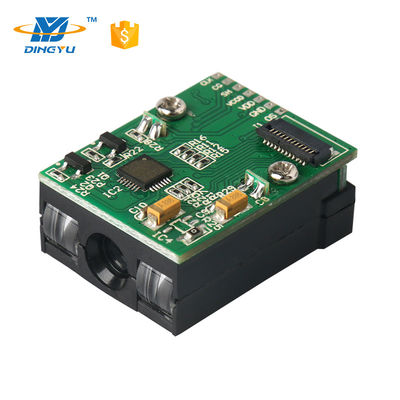

    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420





    Features

    ☆ Read all mainstream 1D barcodes ,like barcodes in the market .
    ☆ It can support multiple systems and languages, Customer-defined development based on customer requirements.
    ☆ High-performance processor, fast decoding , high-precision (3mil) reading ability.
    ☆ Simple configuration, support upgrade online.
    ☆ Support interfaces: USB, TTL, PS2, RS232.
    ☆ Support multiple systems and languages.

    Dimension:
    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420

    Application



    Product Data Sheet


    Physical Parameter
    Weight ≈6g
    Dimension (L)26.5mm * (W)20.0mm *(H)11.5mm
    Interface Type FFC 12PIN Pitch 0.5
    Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
    Power Supply DC 3.3-5V@50mA(work)
    Performance
    Scan Type Linear CCD
    Light Source Visible red light,625±10nm
    CPU 32-bit
    Resolution 2500
    Resolution ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 40mm-600mm
    Scan Mode Manual, Continuous, Auto sense, Flashing
    Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
    Print Contrast Signal ≥20%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
    Environmental
    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2 meters
    Transport vibration Test 10H@125RPM
    Depth of field
    3MIL 80-120mm (PCS90%,Code 39)
    13MIL 30-320mm (PCS90%,EAN-13)
    20MIL 30-450mm (PCS90%,Code 39)
    40MIL 130-700mm (PCS90%,Code 39)
    Accessories List
    Cable(Optional) USB Cable, used to connect the DE1400 to a host device.
    RS232 Cable, used to connect the DE1400 to a host device, with USB supply cable.
    PS2 Cable, used to connect the DE1400 to a host device and keyboard input device.
    Development board(Optional) Equipped with a trigger button, beeper and RS-232 & USB output function.
    Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).


    Definition (12pin pitch0.5)
    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420


    PIN# Signal I/O Definition
    1 NC - Hang in the air
    2 VCC P 3.3-5V power input
    3 GND p Ground
    4 RX Input TTL-RS232 Receive
    5 TX Output TTL-RS232 Send
    6 D-/HOST DATA Input/Output USB_D- Signal/PS2_HOST DATA
    7 D+/HOST CLK Input/Output USB_D+ Signal/PS2_HOST CLK
    8 KB DATA - PS2_KB DATA
    9 BUZ Output Buzzer output signal
    10 LED Output LED output signal
    11 KB CLK - PS2_KB CLK
    12 TRIGGER Input Trigger pin, keep low power level more than 20ms can trigger decoding.


    Cable Interface
    DE1420 scanner must be connected with terminals, PC host, POS and Android host etc.
    USB:
    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420
    TTL/RS232:
    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420

    PS2:
    Small Size Good Quality 1D Linear CCD Barcode Module BarCode Decoder DE1420


    FAQ


    Q:Can I make a trial or sample order before mass order?
    A: Yes,sure.
    Q: How can I print my logo? how much ?
    A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
    Q:Can we have our logo or company name to be printed on the product or package?
    A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
    Q: How about your warranty?
    A: The buyer will enjoy 1 year warranty since buying from us.
    Q: If the scanner not working ,how can we do ?
    A: pls contact and inform related sales representative with the issues you have.
