| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DF3100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 80g | Scan Type: | Linear CCD |
|---|---|---|---|
| Resolution: | ≥3mil/0.076mm(PCS90%,Code 39) | Ambient Light: | Dark Environment, Indoor Natural Light |
| Transport Vibration Test: | 10H@125RPM | Storage Temperature: | -40℃ To 70℃ |
| High Light: | mountable barcode scanner,fixed mount barcode reader |
||
It is continuous scan/auto-sense(for choice),very comfortable operating.
Support 0--10,000 LUX ambient light resistance.
Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing.

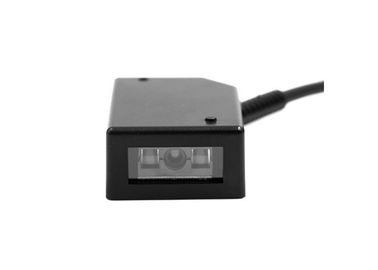

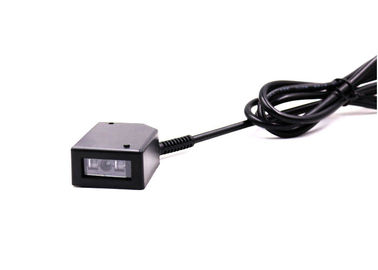

It can be customized according to customer demand.1D CCD mini fixed mount barcode scanner,barcode reader module for suppermarket.
Features
1. Support reading barcodes from screen.
2. Can be customized according to customer demand.
3. Scanner reads 1D barcodes printed on labels or displayed on device screens.
4. No driver, plug and play.
5. Super scanning and decoding ability, can read incomplete and fuzzy codes..
6 .32 bit processor, More fast than 8 bit and 16 bit barcode scanners.
Applicable occasions
Factory assembly line, logistics store, supermarket,
bookstore recount , in the pharmaceutical industry, etc
Parameter
| Physical Parameter | |
| Weight | ≈80g(USB) |
| Dimension | (L)49.2mm * (W)37.5mm * (H)20.0mm |
| Interface Type | USB ,DB9 |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Power Supply | DC 5V@80mA(work) |
| Performance | |
| Scan Type | Linear CCD |
| Light Source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 30mm-700mm |
| Scan Mode | Manual ,Continuous, Auto sense, flashing |
| Scan Angle | Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5 meters |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 80-120mm (PCS90%,Code 39) |
| 13MIL | 30-320mm (PCS90%,EAN-13) |
| 20MIL | 30-450mm (PCS90%,Code 39) |
| 40MIL | 130-700mm (PCS90%,Code 39) |
| Accessories List | |
| Cable(non-removable) | USB Cable, used to connect the DF3100 to a host device. RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder. |
| Power Adaptor | Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional). |
Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)
FAQ
1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
A: Our officially promised warranty time is 1 years after delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
With well packed carton by foam and plastic film to advoid goods damage.
5. where I can get the support ?
A: We support you technically 24h
