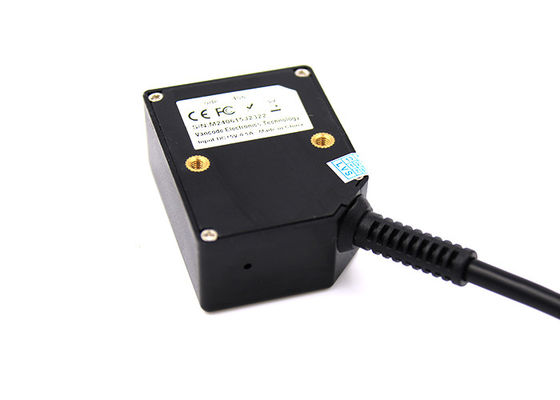

Durable 1D CCD Mini Fixed Mount Scanner For Factory Assembly Line 1.5m Drop Height

Durable 1D CCD Mini Fixed Mount Scanner For Factory Assembly Line 1.5m Drop Height

    • Durable 1D CCD Mini Fixed Mount Scanner For Factory Assembly Line 1.5m Drop Height
    • Durable 1D CCD Mini Fixed Mount Scanner For Factory Assembly Line 1.5m Drop Height
  • Durable 1D CCD Mini Fixed Mount Scanner For Factory Assembly Line 1.5m Drop Height

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: FCC, RoHS, CE, IEC, FAD
    Model Number: DF3100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: 188mm L * 95mm W * 40mm H
    Delivery Time: 5
    Payment Terms: T/T, Western Union
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    Colour: Black Scan Type: Linear CCD
    Depth Of Field: 30mm-700mm Scan Angle: Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
    Drop Height: 1.5 Meters Light Source: Visible Red Light,625±10nm

    1D CCD Mini Fixed Mount Barcode Scanner Barcode Reader For Factory Assembly line




    Product Description



    It  has long range linear CCD sensor.No driver, plug and play.Super scanning and decoding ability, can read incomplete and fuzzy codes.



    Can be customized according to customer demand.Mini size and lightweight .



    It s a high performance fixed mount scanner with leading CCD image recognition technology.





    Features



    1. Support reading barcodes from screen. Cable can not removable



    2. Easy to integrate, high-standard automation and can be embedded into a End devices.



    3. Super scanning and decoding ability, can read incomplete and fuzzy codes.



    4. Small size: Easily to integrate into any device, especially for limit space application.



    5. Using in machines,vending machines, and many more.



    6 .32 bit processor, More fast than 8 bit and 16 bit barcode scanners.







    Applicable occasions



    Factory assembly line,  logistics store,  supermarket,



    bookstore recount ,  in the pharmaceutical industry, etc







    Parameter



    Physical Parameter
    Weight ≈80g(USB)
    Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
    Interface Type USB ,DB9
    Communication Mode USB(USB-KBW,USB-COM),RS232
    Power Supply DC 5V@80mA(work)
    Performance
    Scan Type Linear CCD
    Light Source Visible red light,625±10nm
    CPU 32-bit
    Resolution 2500
    Resolution ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-700mm
    Scan Mode Manual ,Continuous, Auto sense, flashing
    Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
    Print Contrast Signal ≥20%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
    Environmental
    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.5 meters
    Transport vibration Test 10H@125RPM
    Depth of field
    3MIL 80-120mm (PCS90%,Code 39)
    13MIL 30-320mm (PCS90%,EAN-13)
    20MIL 30-450mm (PCS90%,Code 39)
    40MIL 130-700mm (PCS90%,Code 39)
    Accessories List
    Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
    RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
    Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).






    Packing & Delivery


    Package Size :188mm L * 95mm W * 40mm H
    Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
    Weight:≈80g(without cable)



    FAQ



    1. What's the shipping way ?

    A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.



    2. What's the payment way ?

    A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.



    3. How about your product warranty ?

    A: Our officially promised warranty time is 1 years after delivery.



    4. Is OEM or ODM available?

    Yes.We are the factory directly.We can make it as your requirement.

    With well packed carton by foam and plastic film to advoid goods damage.



    5. where I can get the support ?

    A: We support you technically 24h
