| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DF4100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Light Source: | Red Light LED 625±10nm(aiming),6500K LEDs(lighting) |
|---|---|---|---|
| Interface Type: | USB,DB9 | Communication Way: | USB(USB-KBW,USB-COM),RS232 |
| Scan Mode: | Manual,Auto Sense | Storage Temperature: | -40℃ To 70℃ |
| High Light: | mountable barcode scanner,fixed mount barcode reader |
||

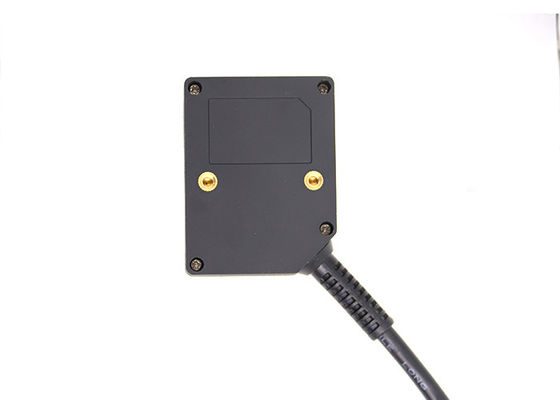

640*480 Mini CMOS 2d New Arrival USB Embedded Fixed Mount Barcode Scanner
Product Description
DF4100 isContinuous scan/auto-sense(for choice),very comfortable operating, Scanner reads 2D & 1D barcodes printed on labels or displayed on device screens. Compact design, CCD mini fixed mount barcode scanner,barcode reader module for suppermarket
Features
Simple structure, widely used in self-service selling machines.
Easy to integrate, high-standard automation and can be embedded into a End devices.
Cable can not removable
Support dark environment scanning.
Small size: Easily to integrate into any device, especially for limit space application.
Application fields: Supermarket,Retail,Healthcare,Logistics,Communication,Clothing industry, Power Industry, Kiosk,Locker, Factory assembly line.
Application
300scans/sec high speed
Medical research Mobile payment barcode scanning
Super scanning and decoding ability, can read incomplete and fuzzy codes.
32 bit processor, More fast than 8 bit and 16 bit barcode scanners.
Microcontroller development
Parameter
|
Scan type
|
CMOS
|
Color
|
White
|
|
Interface Type
|
USB,DB9
|
Communication way
|
USB(USB-KBW,USB-COM),RS232
|
|
CPU
|
32-bit
|
Resolution
|
640*480
|
|
Decoding speed
|
60CM/S
|
Depth of field
|
30mm-600mm
|
|
Light source
|
Red light LED 625±10nm(aiming),6500K LEDs(lighting)
|
Scan angle
|
Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
|
|
Print contrast signal
|
≥20%
|
Scan mode
|
Manual,Auto sense
|
|
Ambient light
|
Dark environment, indoor natural light
|
Storage capacity
|
512K(over 5000 barcode)
|
|
Symbologies
|
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,RSS,China Post,Telepen,etc.
2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,OCR,etc. |
||
|
Environmental
|
|||
|
Operating temperature
|
-20℃ to 50℃
|
Storage temperature
|
-40℃ to 70℃
|
|
Humidity
|
5% to 95%(non-condensing)
|
Drop Height
|
1.5m
|
|
Transport vibration Test
|
10H@125RPM
|
||
|
Depth of field
|
|||
|
4MIL
|
80-120mm (PCS90%,Code 39)
|
13MIL
|
80-350mm (PCS90%,EAN-13)
|
|
20MIL
|
60-450mm (PCS90%,Code 39)
|
40MIL
|
180-600mm (PCS90%,Code 39)
|
|
20MIL
|
30-250mm (PCS90%,QR Code)
|
||
|
Accessories list
|
|||
|
Cable(non-removable)
|
USB Cable, used to connect the DF4100 to a host device.
|
||
|
RS232 Cable, used to connect the DF4100 to a host device, with USB supply
|
|||
Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)
