| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS6202G |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | L260mm*W260mm*H80mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Interface Type: | USB | Communication Way: | Wireless 2.4GHz |
|---|---|---|---|
| Scan Type: | CMOS | CPU: | 32-bit |
| Resolution: | ≥3mil/0.076mm | Depth Of Field: | 0mm-700mm |
| Storage: | 512K（over 5000 Barcode） | Battery Capacity: | 1600mAh |
| Battery Charging Time: | 6.5 Hours | ||
| High Light: | cmos barcode scanner,usb handheld scanner |
||

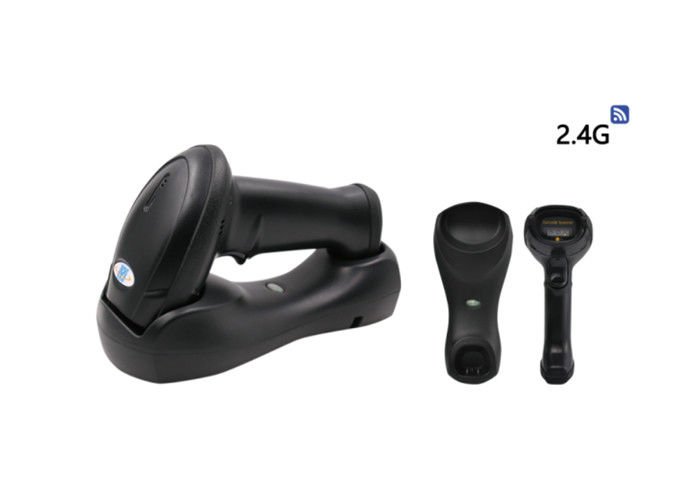

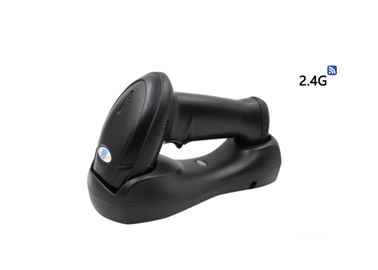

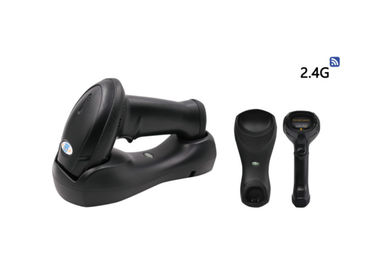

512K Storage Commercial Application 2D Wireless Barcode Scanner With Base
Product Description
DS6202G is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using.
☆ Read all the mainstream 1D 2Dcodes in the market easily.
☆ High-performance processor, fast decoding.
☆ Support interface: USB, wireless 2.4G.
☆ Intelligent automatic connection when it’s beyond range, not manual setting.
☆ Low power consumption, long working hours.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈210g(Scanner)≈230g(Base) |
| Dimension | L175mm * W72mm * H100mm(Scanner) |
| L200mm * W90mm * H51mm(Base) | |
| Interface Type | USB |
| Communication way | wireless 2.4GHz |
| Power supply | DC 5V@220mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Red light LED 625±10nm(aim),6500K LEDs(lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Scan tolerance | 60CM/S |
| Depth of field | 0mm-700mm |
| Scan mode | Manual, Auto sense |
| Scan angle | Roll360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Dark environment, indoor natural light |
| Wireless communicate mode | Synchronization , asynchronous, storage mode |
| Wireless transmission distance | 2.4GHz,200meters(Open distance) |
| Storage | 512K(over 5000 barcode) |
| Battery capacity | 1600mAh |
| Battery charging time | 6.5 hours |
| Continuous working time | ≥12 hours |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5, ITF-6, ITF-14,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc. 2D: QR Code, Micro QR Code,PDF417,Micro PDF417,Data Matrix, Hanxin Code, etc. |
| Environmental | |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 25-110mm (PCS90%,Code 39) |
| 13MIL | 25-390mm (PCS90%,EAN-13) |
| 20MIL | 55-460mm (PCS90%,Code 39) |
| 40MIL | 110-700mm (PCS90%,Code 39) |
| 20MIL | 0-200mm (PCS90%,QR Code) |
| Accessories list | |
| Data cable | USB, connect the scanner to a host device and charging |
| Base | Used to receive and transmit scanner data |
