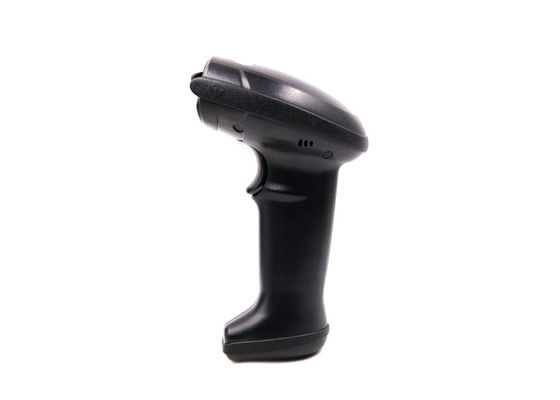

Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution

Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution

  • Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution
  • Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution
  • Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution
Retail Chain Barcode Scanner Gun 2D Image 60cm/S Decoding Speed 3 Mil Resolution
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DS6203
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: L220mm * W100mm * H80mm
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Weight: 160g Dimension: L175mm * W72mm * H100mm
Communication Method: USB Power Supply: DC 5V@220mA
Scan Type: CMOS CPU: 32-bit
Resolution: ≥3mil/0.076mm(PCS90%,Code 39) Decoding Speed: 60cm/s
Depth Of Field: 0mm-600mm Scan Angle: Roll±360°,Pitch±60°,Skew±60°
Print Contrast Signal: ≥20% Operating Temperature: -20℃ To 50℃
Storage Temperature: -40℃ To 70℃ Humidity: 5% To 95%(non-condensing)
Drop Height: 1.8m
High Light:

cmos barcode scanner

,

usb handheld scanner

3mil Resolution 2D Image Handheld Barcode Scanner Retail chain barcode Scanning gun 60cm/s Decoding Speed



Product Description

DS6203 is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in industrial manufacturing, inventory.



Features

1. Industrial design, widely used in complex environment, industrial manufacturing, inventory.

2. Read all mainstream 1D 2Dbarcodes in the market easily. (3mil)

3. Interface: USB.

4. Laser cross light, ensure that scanning the barcode correctly.

5. Support customization and secondary development.



Application

▅ Supermarket           ▅ Retail chain

▅ Courier                   ▅ Industrial manufacturing.



Physical Parameter
Weight 160g(without cable)
Dimension L175mm * W72mm * H100mm
Communication method USB
Power supply DC 5V@220mA(work)
Performance
Scan type CMOS
Light source Laser aim, Visible red light,625±10nm leds
CPU 32-bit
Resolution 725*480
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 60cm/s
Depth of field 0mm-600mm
Scan mode Manual, Auto sense
Scan angle Roll±360°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark,Indoor natural light
Symbologies

1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128,Code 39,Code 93,Code 11, Interleaved 2 of 5,ITF-6, ITF-14, Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5, Codabar( NW-7), Plessey, MSI,RSS,etc.

2D: QR code, mini QR code, PDF417, Micro PDF417, Data matrix, Hanxin code, etc.

Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.8m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 60-100mm (PCS90%,Code 39)
13MIL 10-320mm (PCS90%, EAN-13)
20MIL 10-430mm (PCS90%,Code 39)
40MIL 110-600mm (PCS90%,Code 39)
Accessories list
Data cable(charging cable) USB, connect the scanner to a host device and charging.



FAQ
1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
A: Our officially promised warranty time is 1 years after delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
With well packed carton by foam and plastic film to advoid goods damage.
5. where I can get the support ?
A: We support you technically 24h
