IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor

IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor

    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
    • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor
  • IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: FC CE ROHS
    Model Number: DS5800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiate
    Packaging Details: 220mm L * 100mm W * 80mm H
    Delivery Time: 5
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    Weight: 290g Dimension: L184mm * W74mm * H93mm
    Communication Way: USB, RS232 Scan Type: Linear CCD
    CPU: 32-bit Resolution: ≥3mil/0.076mm
    Decoding Speed: 300 Times/s Depth Of Field: 10mm-600mm

    Industrial Grade Waterproof 1D Handheld Barcode Scanner USB RS232 CCD Barcode Reader



    Product Catalog.pdf



    Product Description

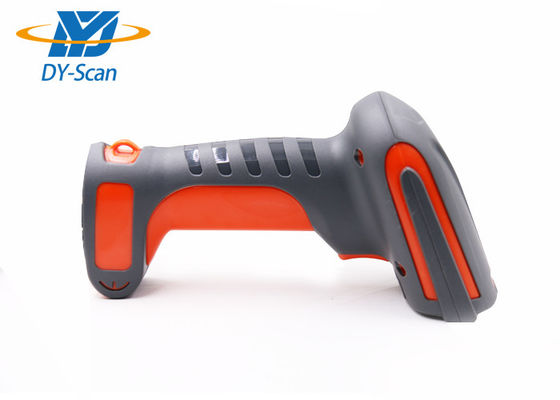

    DS5800 is a high-performance industrial 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, inventory, supermarket, etc.



    Features

    ☆ Ergonomic Industrial design, comfortable using.

    ☆ Read all mainstream 1D barcodes in the market easily.

    ☆ High-performance processor, fast decoding. (3mil)

    ☆ IP68, easy to be used in complex environment.

    ☆ Support multiple systems and languages, secondary environment.

    ☆ Widely used in supermarket, inventory management.



    Application

    ▅ Supermarket          ▅ Retail chain

    ▅ Courier                   ▅ Industry



    Physical Parameter
    Weight ≈290g
    Dimension L184mm * W74mm * H93mm
    Interface Type USB
    Communication way USB, RS232
    Power supply DC 5V@100mA(work)
    Performance
    Scan type Linear CCD
    Light source Visible red light,625±10nm
    CPU 32-bit
    Resolution 2500
    Resolution ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300 times/s
    Depth of field 10mm-600mm
    Scan mode Manual, Continuous, Auto sense
    Scan angle Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
    Print contrast signal ≥20%
    Ambient light Dark,Indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5,ITF-6, ITF-14, Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,etc.
    Environmental
    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.8m
    Transport vibration Test 10H@125RPM
    Depth of field
    3MIL 60-100mm (PCS90%,Code 39)
    13MIL 10-320mm (PCS90%,EAN-13)
    20MIL 10-430mm (PCS90%,Code 39)
    40MIL 110-600mm (PCS90%,Code 39)
    Accessories list
    Data cable USB, connect the scanner to a host device



    IP68 Waterproof 1D CCD Barcode Reader Industrial Grade High Performance Processor



    Our Services
    1. Your inquiry related to our products or price will be replied in 24 hours.
    2.Experienced staff to answer all your inquiries in English.
    3. Protection of your sales area, ideas of design and all your private information.
    4. Engineers can help you to solve any technical problems.
    5. 1 year warranty.
