Desktop Orbit Omnidirectional Scanner , Hand Free Auto Barcode Scanner

Desktop Orbit Omnidirectional Scanner , Hand Free Auto Barcode Scanner

Desktop Orbit Omnidirectional Scanner , Hand Free Auto Barcode Scanner

Product Details:

Place of Origin: China
Brand Name: DYscan
Certification: FCC, RoHS, CE, IEC, FAD
Model Number: DP8200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: L120mm*W80mm*H120mm
Delivery Time: 5
Payment Terms: T/T, Western Union
Supply Ability: 10000
Contact Now
Detailed Product Description
Scan Type: CMOS Color: White
Decoding Speed: 60CM/S Interface Type: USB,RS232
Dimension: L70mm * W105mm * H146mm

5000 Unit/Units per Month desktop handfree auto scan 2d barcode scanner



Product Description

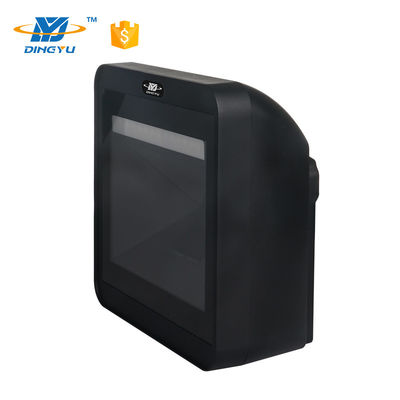

DP8200 is a high performance fixed mount scanner with leading CMOS image recognition technology and intelligent image recognition system. It can scan universal 2D codes, read the paper, goods, screens, other media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various self-service machines, industrial lines, etc.





Features



☆ Large window design, large viewing angle, ultra-sensitive auto sense scanning.

☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)

☆ Support USB barcode information transmission. ( languages customization)

☆ Support multiple languages and systems.

☆ Interface: USB, RS232.

☆ Widely used in supermarket, chain stores, mobile payment.



Application



▅ Mobile payment ▅ Supermarket

▅ Courier



Parameter



Physical Parameter
Weight 350g(without cable)
Dimension L70mm * W105mm * H146mm
Interface type USB,DB9
Communication way USB(USB-KBW,USB-COM),RS232
Power supply DC 5V@400mA(work)
Performance
Scan type CMOS
Light source Red light LED 625±10nm(aim), 6500K LEDs(lighting)
CPU 32-bit
Resolution 640*480
Resolution ≥4mil/0.1mm(PCS90%,Code 39)
Scan tolerance 60CM/S
Depth of field 0mm-500mm
Scan mode Manual, Auto sense
Scan angle Roll360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark, Indoor natural light
Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,RSS,China Post,Telepen,etc.
2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Transport vibration Test 10H@125RPM
Depth of field
4MIL 0-40mm (PCS90%,Code 39)
13MIL 0-250mm (PCS90%,EAN-13)
20MIL 10-350mm (PCS90%,Code 39)
40MIL 100-500mm (PCS90%,Code 39)
20MIL 0-200mm (PCS90%,QR Code)
Accessories List
Data cable USB cable, used to connect the DP8200 and the information receiving host.
  RS232 cable,USB cable, used to connect the DP8200 and the information receiving host, with USB supply cable.


Packing & Delivery


Package Size :115*160*102

Size:L70mm * W105mm * H146mm

Weight:≈350g(without cable)



Our Services

1. Your inquiry related to our products or price will be replied in 24 hours.

2. Experienced staff to answer all your inquiries in English.

3. Protection of your sales area, ideas of design and all your private information.

4. Engineers can help you to solve any technical problems.

5. 1 year warranty.
