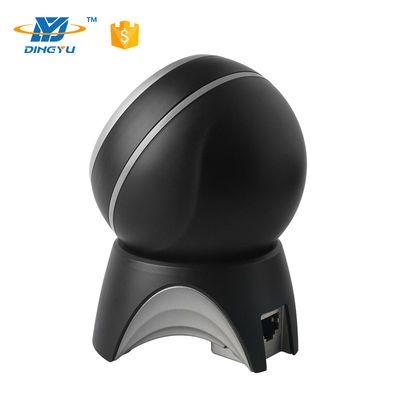

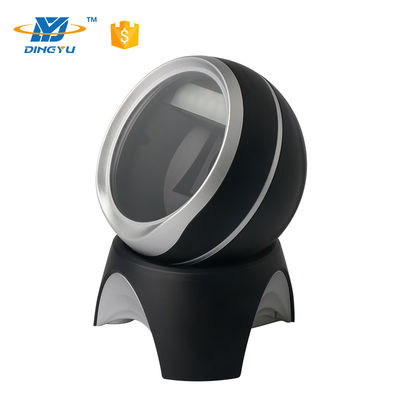

32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

    • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500
    • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500
    • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500
    • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500
    • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500
  • 32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: FC CE ROHS
    Model Number: DP8500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiation
    Packaging Details: L75mm * W80mm * H140mm
    Delivery Time: 5
    Payment Terms: T/T, Western Union
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    CPU: 32bit Color: White
    Dimension: 92.33mm L *84.74mm W * 124.61mm H Humidity: 5% To 95%(non-condensing)
    Resolution: 5mil/0.127mm Scan Type: CMOS

        Desktop Omni Barcode Scanner with USB/RS232/PS2 Interface



    32 Bit CPU Omni Automatic Barcode Scanner For Store 4 Mil /0.1mm Resolution DP8500



    Product Description



    DP8500 is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.

    It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes.

    Compact design, beautiful appearance with efficient reading performance, provide users with excellent experience.



    Features



    1. Fashionable and mini design,Highly sensitive large window
    2. 5mil, Auto sense scanning.
    3. Large adjustable rotation angle
    4. Switch screen and paper scanning mode freely
    5. Support multiple systems and languages

    6. Bluetooth function ( Customization)





    Application



    ▅ Mobile payment ▅ Supermarket

    ▅ Courier





    Parameter





    Physical Parameter
    Weight 190g ( Without cable)
    Dimension 92.33mm L *84.74mm W * 124.61mm H
    Interface type USB, RS232
    Communication way TTL-232 , USB (HID-KBW,USB-COM)
    Power supply DC 5V@470mA(work)
    Performance
    Scan type CMOS
    Light source Aiming: 617 nm LED ; illumination:6500K LED
    CPU 32-bit
    Optical Resolution 640*480
    Resolution ≥5mil/0.127mm(PCS90%,Code 39)
    Scan speed 1m/s
    Depth of field 0-300mm
    Scan mode Auto sense
    Scan angle Roll360°, Pitch±45°, Skew±32°
    Print contrast signal ≥25%
    Ambient light Dark, Indoor natural light
    Symbologies

    1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc.

    2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc.

    Environmental
    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2m
    Transport vibration Test 10H@125RPM
    Accessories List
    Data cable USB cable, used to connect the DP8500 and the information receiving host.
      RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable.



    Packing & Delivery



    Package Size :150*230*95

    Size: 92.33mm L *84.74mm W * 124.61mm H

    Weight:≈190g(without cable)
