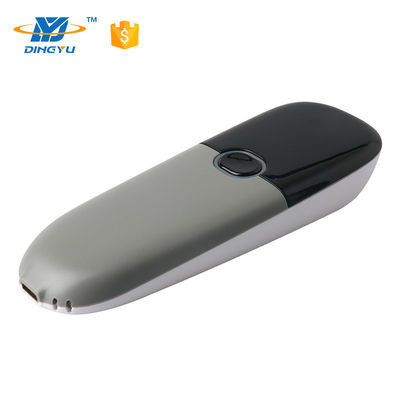

Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D

Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D

  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
  • Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
Handy Wireless 1D Bluetooth Barcode Scanner , DC 5V 100mA Industrial Barcode Reader DI9100-1D
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DI9120-1D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Package Size :110*140*56mm
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Weight: 80g(without Cable) Dimension: L49.2mm * W37.5mm * H20.0mm
Interface Type: Micro USB Communication Way: Wireless Bluetooth
Scan Mode: Manual, Continuous, Auto Sense, Flashing Wireless Communication Mode: Synchronous , Asynchronous, Storage Mode
High Light:

cordless barcode reader

,

cordless usb barcode scanner

    1D DC 5V 100mA Portable industrial Wireless handy ccd mini usb barcode scanner


Product Description

DI9100 is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods other media Barcodes. Widely used in courier, inventory management and other scenes.

Features

☆ Wearable design, widely used in warehouse, express.
☆ Read all mainstream 1D barcodes in the market easily.(3mil)
☆ Ultra-low power consumption, continuous working time 12h.
☆ 200,000 data storage capacity.
☆ Bluetooth 4.2, intelligent automatic connection when it’s beyond

range, not manual setting.
☆ Mode: Bluetooth(HID,SPP,BLE), wired, wireless 2.4G, connected with PC, mobile phone easily.

Application

▅ Courier ▅ Warehouse

Parameter


Physical parameter
Weight≈80g(without cable)
DimensionL49.2mm * W37.5mm * H20.0mm
Interface TypeMicro USB
Communication wayWireless Bluetooth
Power supplyDC 5V@100mA(work)
Performance
Scan typeLinear CCD
Light sourceVisual red light,625±10nm
CPU32-bit
Resolution2500
Resolution≥3mil/0.1mm(PCS90%,Code 39)
Decoding speed300 times/s
Depth of field10mm-600mm
Scan modeManual, continuous, Auto sense, flashing
Scan angleRoll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal≥20%
Ambient lightDark,Indoor natural light
Wireless communication modeSynchronous , asynchronous, storage mode
Wireless transmission distanceBluetooth 4.2, 30meters(Open distance)
storage capacity512K(over 5000barcode)
Battery capacity1000mAh
Battery charge time2hours
Continuous working time≥8hours
SymbologiesUPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature0℃ to 50℃
Storage temperature-20℃ to 60℃
Humidity5% to 95%(non-condensing)
Drop Height1.5meters
Transport vibration Test10H@125RPM
Depth of field
3MIL60-100mm (PCS90%,Code 39)
13MIL10-320mm (PCS90%,EAN-13)
20MIL10-430mm (PCS90%,Code 39)
40MIL110-600mm (PCS90%,Code 39)
Accessories list
Charging cableUSB, connect the scanner to a host device and charging
Power adaptorOutput: DC5V 1A, Input: AC100~240V 50~60Hz
ReceiverWireless receiver, receive and transmit scanner data




Packing & Delivery

Package Size :110*140*56mm
Size:L49.2mm * W37.5mm * H20.0mm
Weight:≈80g(without cable)





FAQ


Q:Can i make a trial or sample order before ordering?
A: Yes,sure
Q: How can i print my logo on printer? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.
Q: Can we have our logo or company name to be printed on the product or package?
A: Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.
Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us
Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have
