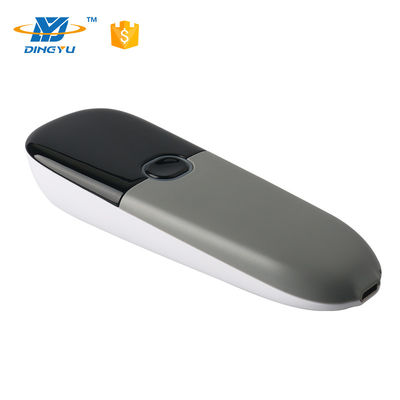

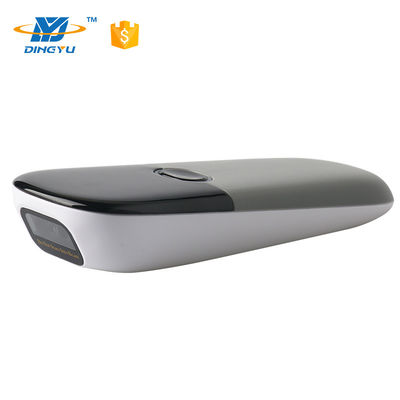

Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D

Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D

    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
    • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D
  • Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: FCC, RoHS, CE, IEC
    Model Number: DI9120 1D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: L135mm*W110mm*H55mm
    Delivery Time: 5
    Payment Terms: T/T, Western Union
    Supply Ability: 10000
    Contact Now
    Detailed Product Description
    Dimension: L130mm * W47.5mm * H24mm Communication Way: Bluetooth Wireless 2.4G
    Scan Type: CCD Light Source: Red Light LED 625±10nm(aim),6500K LEDs(illumination)
    Resolution: 3mil Ambient Light: Dark , Indoor Natural Light
    Depth Of Field: 30-700mm Print Contrast Signal: ≥20%

    Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D



    Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D







    Features



    Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D





    Application



    ▅ Courier ▅ Warehouse



    Android Handheld Bluetooth 1D Barcode Scanner Micro USB Interface Type DI9120-1D





    Parameter





    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 2500
    Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-700mm
    Scan Mode Manual ,Continuous, Auto Sense, Fashing
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±60°,Roll: ±30°,Skew: ±60°
    Print Contrast Signal ≥20%
    Ambient Light Dark environment, indoor natural light
    Wireless communication mode Synchronization , storage
    Wireless transmission distance 2.4GHz,150meters; Bluetooth 30meters(Open distance)
    Storage 16Mb(over 100,000 Product code)
    Battery capacity 1200mAh
    Battery charging time About 3.5 hours
    Continuous working time ≥16hours
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.





    Weight ≈70g(without cable)
    Dimension L130mm * W47.5mm * H24mm
    Communication Mode USB,Wireless 2.4G,Wireless Bluetooth 4.2
    Interface Type Type C
    Power Supply DC 5V@80mA(work)
