    Product Details:

    Place of Origin: China
    Brand Name: DY Scan
    Certification: CE,RoHS,FDA,IEC
    Model Number: DE1300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: $9.9-$18
    Packaging Details: Paper box, carton size 32*18*5cm, 200pcs per carton.
    Delivery Time: 3-5 working days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description

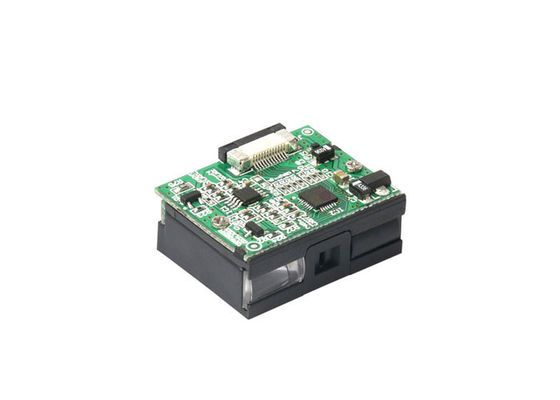

    Item Name: DE1300 Barcode Reader Engine Engine Size: (L)22.5mm * (W)28.0mm * (H)12.3mm
    Scan Type: CCD Scan Mode: Manual ,Continuous,Auto Sense,flashing
    Scan Angle: Roll±30°,Pitch±50°,Skew±50°(PCS90%,Code 39,10mil/0.25mm) Scan Speed: 300times/s
    Optical Resolution: 1500 CPU: 32-bit
    Interface Type: 12PIN Pitch 0.5 Communication Mode: USB(USB-KBW、USB-COM),TTL,PS2
    Power Supply: DC 3.3-5V@50mA(work) Light Source: Visible Red Light,625±10nm
    Warranty: 1 Year

    3.3-5V 4mil Resolution 1D CCD Barcode Reader Scanner Engine For Kiosk Machine





    Product Description

    DE1300 is an embedded barcode scanner module with high quality CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB, TTL, PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.





    Product Feature



    ☆ Small design size, widely used in PDA and other kiosk machines.

    ☆ Read mainstream 1D barcodes .

    ☆ High-performance processor, fast decoding. (4mil)

    ☆ Low power consumption, upgrade online.

    ☆ Interface: USB, TTL, PS2.

    ☆ Support multiple systems and languages, secondary development.



    Product picture

    1500 Resolution Barcode Scan Engine 3.3 - 5V 1 Year Warranty For Kiosk Machine

    1500 Resolution Barcode Scan Engine 3.3 - 5V 1 Year Warranty For Kiosk Machine

    Physical Parameter
    Weight ≈6g
    Dimension (L)22.5mm * (W)28.0mm * (H)12.3mm
    Interface Type 12PIN Pitch 0.5
    Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
    Power Supply DC 3.3-5V@50mA(work)
    Performance
    Scan Type Linear CCD
    Light Source Visible red light,625±10nm
    CPU 32-bit
    Optical Resolution 1500
    Resolution ≥4mil/0.1mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 60mm-500mm
    Scan Mode Manual ,Continuous,Auto sense,flashing
    Scan Angle Roll±30°,Pitch±50°,Skew±50°(PCS90%,Code 39,10mil/0.25mm)
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
    Environmental
    Operating temperature -20℃ to 50℃
    Storage temperature -40℃ to 70℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.2 m
    Transport vibration Test 10H@125RPM
    Depth of field
    4MIL 100-120mm (PCS90%,Code 39)
    13MIL 65-240mm (PCS90%,EAN-13)
    20MIL 65-350mm (PCS90%,Code 39)
    40MIL 150-500mm (PCS90%,Code 39)
    Accessories List
    Cable(Optional) USB Cable, used to connect the DE1300 to a host device.
    RS232 Cable, used to connect the DE1300 to a host device, with USB supply cable.
    PS2 Cable, used to connect the DE1300 to a host device and keyboard input device.
    Development board( optional) Equipped with a trigger button, beeper and RS-232 & USB output function.
    Power Adaptor Output: DC5V 1A, Input: AC100~240V 50~60Hz(serial port optional).



    Definition (11PIN pitch 0.5 )

    PIN# Signal I/O Definition
    1 NC - Hang in the air
    2 VCC - 3.3-5V power input
    3 GND - Ground
    4 RX Input TTL-RS232 receive
    5 TX Output TTL-RS232 send
    6 D-/HOST DATA Input/Output USB_D- Signal/PS2_HOST DATA
    7 D+/HOST CLK Input/Output USB_D+ Signal/PS2_HOST CLK
    8 KB DATA - PS2_KB DATA
    9 BUZ Output Buzzer output signal
    10 LED Output LED output signal
    11 KB CLK - PS2_KB CLK
    12 TRIGGER Input Trigger pin, keep low power level more than 20ms can trigger decoding.



    FAQ:

    Q1: Can I get some samples of this barcode engine? Are they free?

    A1: Of course you can get sample for testing before bulk order, but samples are not free. We charge the samples but will refund after mass order.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.

    Q3: What about payment methods?

    A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.

    Q4: Can you list the products of your company?

    A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Desktop/Handheld Barcode Scanner.

    Q5: Where can we download the user manual of your products?

    A5: User manual will be sent to you by email after the sample order.

    Q6: Warranty time?

    A6: 1-3 years.

    Q7: Do you provide Evaluation Kit for testing barcode scanner modules?

    A7: Yes,we provide free evaluation kit for test barcode scanner modules.

    Q8: Product OEM?

    A8: Yes, but it requires certain MOQ and the cost need to be added separately.

    Q9: Customer service?

    A9: Any question of product after you receipt,please contact us,we'll reply you in 24 hours.

    Q10: What shiping methods do you have?

    A10: Since the modules are very small, the common shiping methods are post air mail or fast express.
