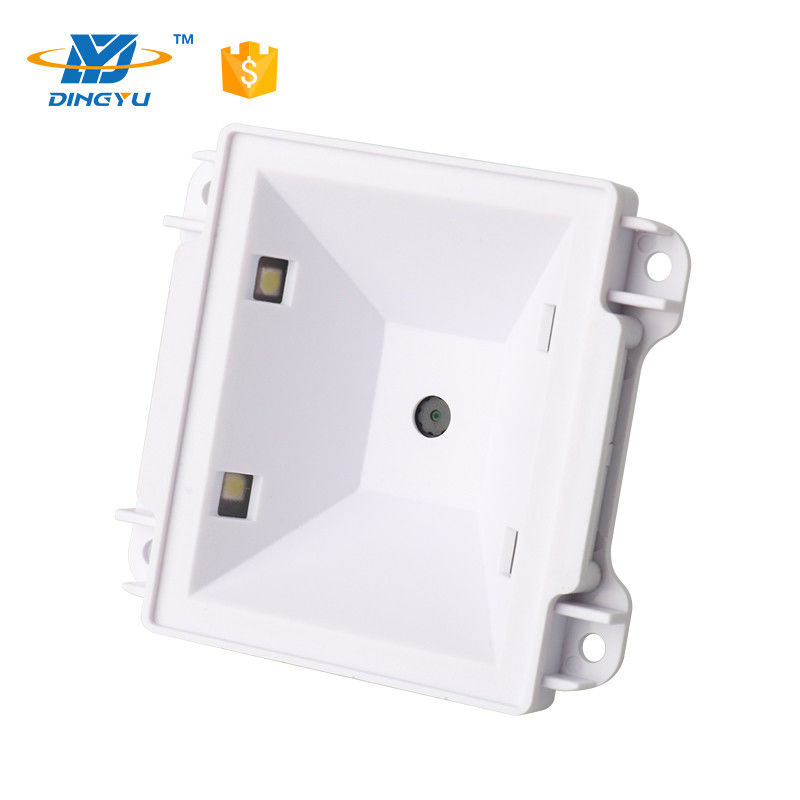

Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning

Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning

    • Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning
    • Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning
  • Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: FCC, RoHS, CE, IEC, FAD
    Model Number: DP8601

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Paper box
    Delivery Time: 3-5 working days
    Payment Terms: T/T, Western Union,Paypal
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Scan Type: CMOS Light Source: 5600K LEDs( Lighting)
    CPU: 32-bit Resolution: 640*480
    Decode Resolution: ≥5mil/0.127mm(PCS90%,Code 39) Decoding Speed: 20cm/s
    Scan Mode: Auto Sense Scan Angle: Roll±360°, Pitch±60°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
    Dimension: 61mm L * 65mm W * 35mm H Interface Type: FFC 8PIN Pitch 1.25
    Communication: USB,TTL,Wiegand, LAN Power Supply: DC 5V@120mA(Max),100ma(work)
    Color: White Weight: ≈30g
    Barcode: Only QR Screen Barcode.

    2D Embedded Platform USB TTL QR code Handfree Automatic Scanning Desktop Scanner

    Product introduction

    DP8601 is a professional 2D scanning platform, can read various screen brightness of the phones QR payment code.



    Large window design, large viewing angle, support all kinds of screen size mobile phones.



    Excellent performance provides users with very comfortable using experience.



    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning

    Features

    ☆ Mini size, widely used in wireless machine, self-service terminal.

    ☆ Read QR code for payment fastly.

    ☆ Support USB barcode information transmission. ( languages customization)

    ☆ High brightness, dark environment scanning, low power consumption.

    ☆ Interface: USB, TTL, Wiegand and Lan. (customization)

    ☆ Support multiple systems and languages, secondary development.



    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning



    Product Data Sheet



    Scan Type CMOS
    Light Source 5600K LEDs( Lighting)
    CPU 32-bit
    Field of view 46°(H) * 36°(V)
    Resolution 640*480
    Resolution ≥5mil/0.127mm(PCS90%,Code 39)
    Decoding speed 20CM/S
    Depth of field 0mm-340mm
    Scan Mode Auto Sense
    Scan angle Roll±360°, Pitch±60°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies QR code , mobile payment code



    Weight ≈30g
    Dimension 61mm L * 65mm W * 35mm H
    Interface Type FFC 8PIN Pitch 1.25
    Communication Mode USB,TTL
    Power Supply DC 5V@120mA(Work),100mA(Standby)



    Application



    ▅ Lockers ▅ Mobile coupons, tickets
    ▅ Medical research ▅ Mobile payment barcode scanning
    ▅ Lottery machines ▅ Self-service terminals
    ▅ Queuing calling equipment ▅ Self-service vending machines
    ▅ Microcontroller development



    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic ScanningDesktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning
    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic ScanningDesktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning



    Company



    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning


    Exhibition



    Desktop 2D Barcode Scanner Embedded Platform USB TTL QR Code Handfree Automatic Scanning





    1. Are you manufacturing company or a trading company?
    We are manufacturing company with our own factory and we could arrange a factory tour for you.
    2. Can I get a sample from you?
    Yes. You could contact us for a paid sample.
    3. Do you have OEM/ODM services?
    Yes. We have our own R&D team. Please contact us for details.
    4. What’s the MOQ for your products?
    MOQ for most of our products is 1 Unit. If you purchase large qty, you will get a better price.
    5. Can I get some technical supports from you?
    Yes! Our technical team gets ready at any time.
    6. What’s the payment term?
    T/T, Western Union, Money gram, PayPal, etc.
    7. What’s the shipping way?
    Via air, sea or express like DHL, UPC, TNT, FedEx and so on.
