| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS5110 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | L175mm * W63mm * H80mm |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Resolution: | ≥3mil |
|---|---|---|---|
| Decoding Speed: | 300 Times/s | Depth Of Field: | 10mm-600mm |
| Scan Mode: | Manual, Continuous, Auto Sense, Flashing | Scan Angle: | Roll：±30°, Pitch：±60°or Greater, Yaw：±60°or Greater） |
| Print Contrast Signal: | ≥20% | Weight: | ≈110g（without Cable） |
| Communication: | USB(USB-KBW、USB-COM）, RS232 | Dimension: | L161mm * W63mm * H80mm |
| High Light: | barcode scanner gun,cmos barcode scanner |
||

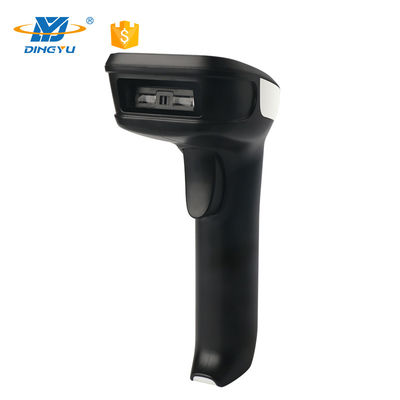

Wired 1D Handheld Barcode Scanner 32 Bit CPU 25CM/S Decoding Speed
Features:
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Support multiple languages and systems.
☆ Interface: USB, RS232
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Parameter:
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Reading precision | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 10mm-600mm |
| Scan Mode | Manual ,Continuous, Auto Sense, Flashing |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±30° | |
| Skew: ±60° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Weight | ≈147g(without cable) |
| Dimension | L161mm * W63mm * H80mm |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Interface Type | USB ,DB9 |
| Power Supply | DC 5V@80mA(work) |
Application:
Company profile:
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
