| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DF3100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | Linear CCD | Light Source: | Light Source Visible Red Light, 625±10nm |
|---|---|---|---|
| CPU: | 32-bit | Resolution: | 2500 |
| Reading Precision: | ≥3mil/0.076mm(PCS90%,Code 39) | Decoding Speed: | 300times/s |
| Weight: | <80g | Dimension: | (L)49.2mm * (W)37.5mm * (H)20.0mm |
| Communication: | USB(USB-KBW、USB-COM），RS232 | Depth Of Field: | 30mm-700mm |
| High Light: | industrial fixed barcode scanner,fixed mount barcode reader |
||

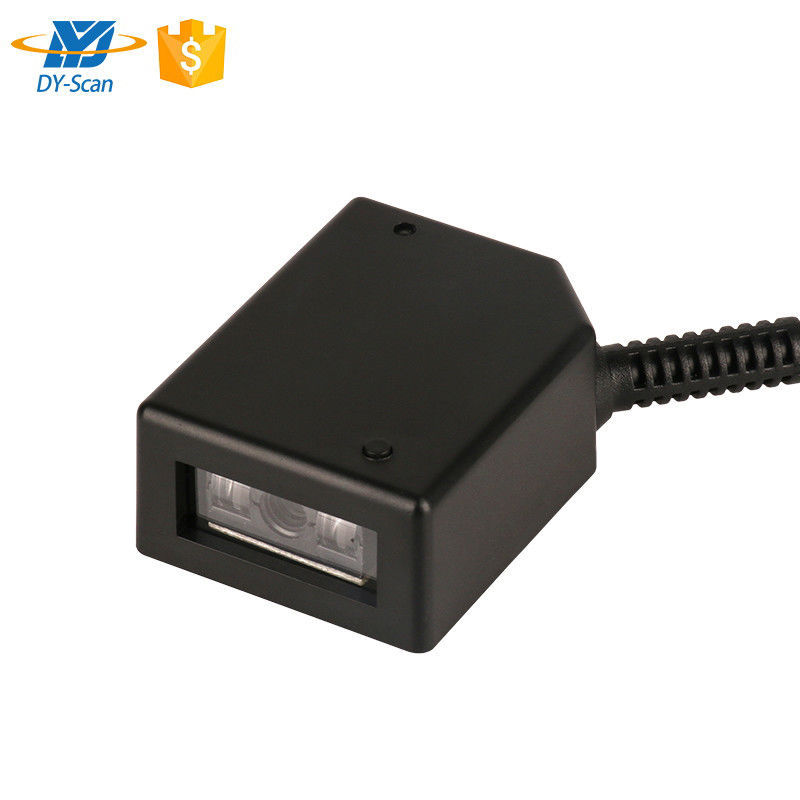

1D Fixed Mount Scanner CCD Image USB Bar Code Scanning Module
DF3100 is a high performance fixed mount scanner with leading CCD image recognition technology and
intelligent image recognition system. It can scan universal 1D codes, read the paper, goods, screens, other
media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various
self-service machines, industrial lines, etc.
☆ Simple structure, widely used in self-service selling machines.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Interface: USB, RS232
☆ Support multiple systems and languages.
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Reading precision | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 30mm-700mm |
| Scan Mode | Manual ,Continuous, Auto Sense, Fashing |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±30° | |
| Skew: ±60° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Weight | <80g |
| Dimension | (L)49.2mm * (W)37.5mm * (H)20.0mm |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Interface Type | USB ,DB9 |
| Power Supply | DC 5V@80mA(work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
FAQ:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
