    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: CE,FCC, RoHS,
    Model Number: DF4200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Neutral Packing
    Delivery Time: 3- 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000pcs per month
    Contact Now
    Detailed Product Description
    Scan Type: CMOS Light Source: Red Light LED 617nm(aiming), 6500K LED( Illumination)
    CPU: 32-bit Resolution: 640*480
    Reading Precision: ≥4mil/0.1mm(PCS90%,Code 39) Decoding Speed: 65CM/S
    Depth Of Field: 30mm-600mm Weight: <100g
    Dimension: (L)70mm * (W)51mm * (H)23mm Communication: USB(USB-KBW、USB-COM),RS232

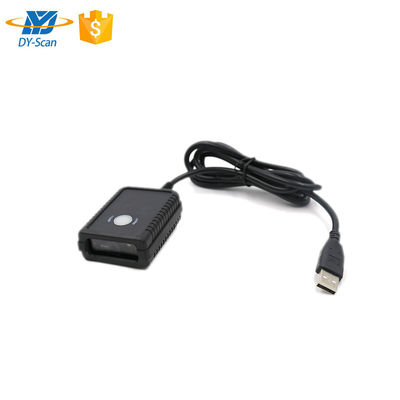

    32Bit 1D Fixed Mount Barcode Scanner/Laser Barcode Scanner for industry









    DF4200 is a high performance fixed mount scanner with leading CMOS image recognition technology

    and intelligent image recognition system. It can scan universal 2D codes, read the paper, goods, screens,

    other media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used

    in various self-service machines, industrial lines, etc.

    Features

    ☆ Simple structure, widely used in self-service selling machines.

    ☆ Read all mainstream 1D 2D barcodes in the market easily.

    ☆ High-performance processor, fast decoding. (4mil)

    ☆ Support dark environment scanning.

    ☆ Interface: USB, RS232

    ☆ Support USB barcode information transmission. ( languages customization)



    32 Bit 1D CMOS Fixed Mount Barcode Scanner , Laser Barcode Scanner For Industry

    Performance

    Scan Type CMOS
    Light Source Red Light LED 617nm(aiming), 6500K LED( Illumination)
    CPU 32-bit
    Field of view 40°(H)x35°(V)
    Resolution 640*480
    Resolution ≥4mil/0.1mm(PCS90%,Code 39)
    Decoding speed 65CM/S
    Depth of field 30mm-600mm
    Scan Mode Manual ,Auto Sense
    Scan angle Roll±360°, Pitch±65°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),MSI Plessey,RSS,China Post,Telepen,etc.
    2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,etc.



    Physical Parameter

    Weight <100g
    Dimension (L)70mm * (W)51mm * (H)23mm
    Communication Mode USB(USB-KBW,USB-COM),RS232
    Interface Type USB ,DB9
    Power Supply DC 5V@280mA(work)



    32 Bit 1D CMOS Fixed Mount Barcode Scanner , Laser Barcode Scanner For Industry32 Bit 1D CMOS Fixed Mount Barcode Scanner , Laser Barcode Scanner For Industry

    32 Bit 1D CMOS Fixed Mount Barcode Scanner , Laser Barcode Scanner For Industry

    32 Bit 1D CMOS Fixed Mount Barcode Scanner , Laser Barcode Scanner For Industry



    FAQ:



    Q1: How do you make sure the high quality barcode scanner?

    DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

    Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

    All our barcode scanners pass CE,FCC,ROSH certifications etc.



    Q2: How do you make quality control?

    DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.



    Q3: How long is the warranty time of barcode scanner?

    DYscan: 12 months



    Q4: How to control the performance stable?

    DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.



    Q5: Can you provide OEM or ODM service for barcode scanner?

    DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
