|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||Neutral Packing|
|Delivery Time:||3- 10 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||2000pcs per month|
|Scan Type:||Linear CCD||Light Source:||Visible Red Light, 625±10nm|
|Reading Precision:||≥3mil/0.076mm(PCS90%,Code 39)||Decoding Speed:||300times/s|
|Depth Of Field:||30mm-700mm||Weight:||≈16g|
|Dimension:||(L )32.2mm * (W )44.15mm * (H )20.0mm||Communication Mode:||USB(USB-KBW、USB-COM), TTL, RS232, PS2|
barcode reader module,
barcode scanner oem module

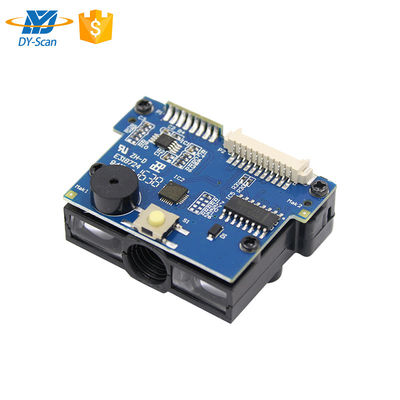

Small Size 1D Barcode Scan Module CCD Barcode Scan Engine Scanner
DE1200 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB,TTL-RS232,PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
☆ Simple structure, widely used in lockers, self-service machines.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Interface: USB, TTL, RS232, PS2.
☆ Support multiple systems and languages, secondary development, customization.
☆ Widely used in various types of SCM, locker, self-service equipment etc.
|Dimension||(L )32.2mm * (W )44.15mm * (H )20.0mm|
|Interface Type||11PIN Pitch 1.25|
|Communication Mode||USB(USB-KBW,USB-COM), TTL, RS232, PS2|
|Power Supply||DC 5V@100mA(work)|
|Scan Type||Linear CCD|
|Light Source||Visible red light, 625±10nm|
|Depth of field||30mm-700mm|
|Scan Mode||Manual ,Continuous, Auto Sense, Fashing|
|Scan angle||Roll±30°, Pitch±60°, Skew±60°(PCS90%, Code 39, 10mil/0.25mm)|
|Print Contrast Signal||≥20%|
|Ambient Light||Dark environment, indoor natural light|
|Symbologies||UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.|
|Operating temperature||-20℃ to 50℃|
|Storage temperature||-40℃ to 70℃|
|Humidity||5% to 95%(non-condensing)|
|Drop Height||1.2 m|
|Transport vibration Test||10H@125RPM|
|Depth of field|
|3MIL||80-120mm (PCS90%,Code 39)|
|13MIL||30-320mm (PCS90%,Code 39)|
|20MIL||30-450mm (PCS90%,Code 39)|
|40MIL||130-700mm (PCS90%,Code 39)|
|Cable(Optional)||USB Cable, used to connect the DE1200 to a host device.
RS232 Cable, used to connect the DE1200 to a host device, with USB supply cable.
PS2 Cable, used to connect the DE1200 to a host device and keyboard input device.
|Power Adaptor||Output: DC5V 1A, input: AC100~240V 50~60Hz(serial port optional).|
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
