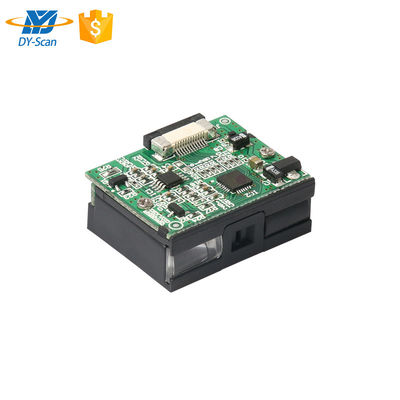

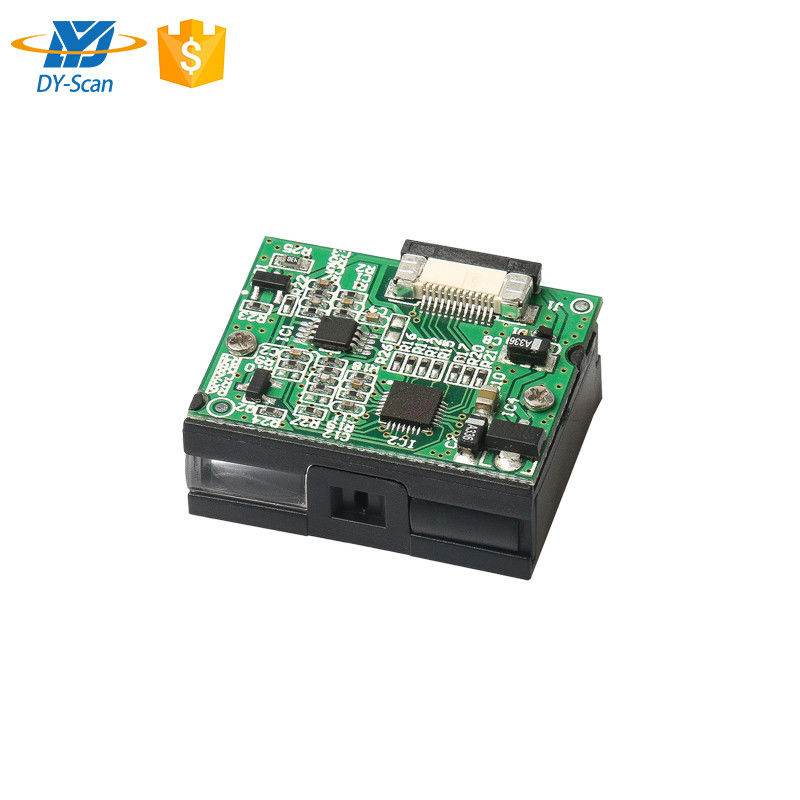

Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

    • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor
    • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor
    • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor
    • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor
    • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor
  • Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: CE,FCC, RoHS,
    Model Number: DE1300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Neutral Packing
    Delivery Time: 3- 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000pcs per month
    Contact Now
    Detailed Product Description
    Scan Type: Linear CCD CPU: 32-bit
    Resolution: 1500 Reading Precision: ≥4mil/0.1mm(PCS90%,Code 39)
    Decoding Speed: 300times/s Depth Of Field: 60mm-500mm
    Weight: <6g Dimension: (L)22.5mm * (W)28.0mm *(H)12.3mm
    Communication Mode: FFC 12PIN Pitch 0.5 Light Source: Visible Red Light, 625±10nm



    Fast Scanning Reader Engine 1D Barcode Scanner Module With CCD Sensor



    Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor



    DE1300 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB, TTL multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

    Features

    ☆ Simple structure, can be used in various types of mechanical equipment.

    ☆ Read all the mainstream 1D codes in the market easily.

    ☆ High-performance processor, fast decoding , high-precision reading

    ability. (4mil)

    ☆ Support interfaces: USB, TTL

    ☆ Support multiple systems and languages



    Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

    Performance

    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 1500
    Reading precision ≥4mil/0.1mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 60mm-500mm
    Scan Mode Manual ,Continuous
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±50°
      Roll: ±30°
      Skew: ±50°
    Print Contrast Signal ≥25%
    Ambient Light Dark environment, indoor natural light
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



    Physical Parameter

    Weight <6g
    Dimension (L)22.5mm * (W)28.0mm *(H)12.3mm
    Communication Mode FFC 12PIN Pitch 0.5
    Interface Type USB,TTL
    Power Supply DC 3.3V@50mA(work)



    Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

    Fast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD SensorFast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD SensorFast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD SensorFast Scanning Reader Engine 1D Barcode Scanner Module With Linear CCD Sensor

    FAQ:



    Q1: How do you make sure the high quality barcode scanner?

    DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

    Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

    All our barcode scanners pass CE,FCC,ROSH certifications etc.



    Q2: How do you make quality control?

    DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.



    Q3: How long is the warranty time of barcode scanner?

    DYscan: 12 months



    Q4: How to control the performance stable?

    DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.



    Q5: Can you provide OEM or ODM service for barcode scanner?

    DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
