High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense

High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense

  • High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
  • High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
  • High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
  • High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
  • High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DE1400
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Neutral Packing
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Scan Type: Linear CCD CPU: 32-bit
Resolution: 2500 Reading Precision: ≥3mil/0.076mm(PCS90%,Code 39)
Decoding Speed: 300times/s Depth Of Field: 30mm-700mm
Weight: <6g Dimension: (L)26.5mm * (W)20.0mm *(H)11.5mm
Communication Mode: USB(USB-KBW、USB-COM),TTL,PS2 Light Source: Visible Red Light, 625±10nm
High Light:

barcode reader module

,

barcode scanner oem module



USB RS232 1D CCD Embedded Scan Barcode Scanner Reader Module Engine

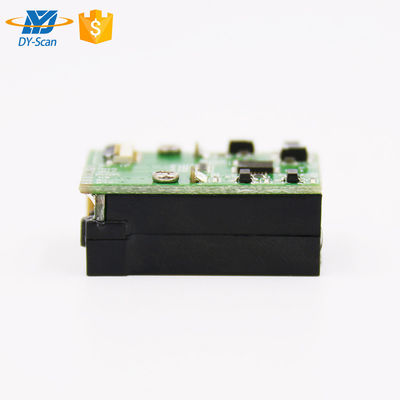

DE1400 is a practical embedded barcode scanner module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, support USB, TTL, PS2 multiple interfaces, read the paper, goods, screens, other media barcodes. Easily embedded in a variety of OEM products handheld, portable, fixed and barcode collector, etc.

Features

☆ Simple structure, can be used in various types of mechanical equipment.

☆ Read all the mainstream 1D codes in the market easily.

☆ High-performance processor, fast decoding , high-precision reading

ability. (3mil)

☆ Simple configuration, support upgrade online.

☆ Support interfaces: USB, TTL, PS2.

☆ Support multiple systems and languages.

☆ Support secondary development and customization.



High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 0

High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 1

High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 2

Performance

Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto Sense, Fashing
Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
  Pitch:±60°
  Roll: ±30°
  Skew: ±60°
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



Physical Parameter

Weight <6g
Dimension (L)26.5mm * (W)20.0mm *(H)11.5mm
Communication Mode USB(USB-KBW,USB-COM),TTL,PS2
Interface Type FFC 12PIN Pitch 0.5
Power Supply DC 3.3-5V@50mA(work)



High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 3

High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 4High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 5High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 6High Resolution Barcode Scan Engine USB RS232 1D CCD Embedded Auto Sense 7

FAQ:



Q1: How do you make sure the high quality barcode scanner?

DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.

Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).

All our barcode scanners pass CE,FCC,ROSH certifications etc.



Q2: How do you make quality control?

DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.



Q3: How long is the warranty time of barcode scanner?

DYscan: 12 months



Q4: How to control the performance stable?

DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.



Q5: Can you provide OEM or ODM service for barcode scanner?

DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
