TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision

TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision

  • TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
  • TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
  • TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
  • TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
  • TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
TTL Interface 2D CMOS Barcode Scan Engine 4 Mil / 0.1mm Reading Precision
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DE2290
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Neutral Packing
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Scan Type: CMOS Size: 21.38mm L × 15.84mm W × 11.58mm H
Resolution: 640*480 Reading Precision: 1D:≥3mil,2D:≥8.7mil @PCS90%
Decoding Speed: 25CM/S Depth Of Field: 3mil:55~100mm,13mil:55~350mm
Weight: <8g Communication Mode: USB(USB-KBW、USB-COM),TTL
Light Source: Lighting: White LED(Automatically Adjust Brightness According To Distance) Aiming; Green LED,wavelength Coverage VVsual Angle: Horizontal 40°× Vertical 30°
High Light:

barcode reader module

,

barcode scanner oem module



2D CMOS Barcode Scan Engine TTL Interface Barcode Scan Engine

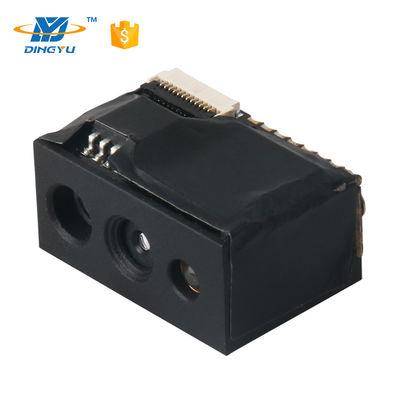

DE2290 is a high-performance 300 thousand pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system.



With excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.



The integrated compact design allows for easy insertion into a wide range of equipment.



Widely used in various types of self-service machines, price checking machines, lockers,etc.



Features

1. Small size, self-contained fixing holes for easy integration into other equipment.



2. Optional multiple interfaces {USB (KBW, COM), TTL}, suitable for different application.



3. Good reading performance, easy to read both screen and paper barcodes.



4. High-definition camera, can read smaller and complicated 1D 2D barcodes.



5. Support multiple working modes (manual, continuous, Auto sense, command control).



Parameter



Weight 3.4g(without cable)
Size 21.38mm L × 15.84mm W × 11.58mm H
Interface

USB,USB-com(driver is needed),TTL

(USB protocol:Full Speed ,USB 2.0)

Light Source lighting: white LED(Automatically adjust brightness according to distance) Aiming; Green LED,wavelength coverage 525nm
CMOS 640×480 CMOS
CUP ARM32-bit
startup time 750ms
Resolution 1D:≥3mil,2D:≥8.7mil @PCS90%
Depth of field 3mil:55~100mm,13mil:55~350mm
Scan mode Trigger mode,Auto sense mode
prompting mode LED indicating lamp,buzzer
Reading angle Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater)
visual angle Horizontal 40°× Vertical 30°
Motion tolerance 25cm/s
Power input 3.5V~5V (DC5V is recommendation) standby current:47mA,Decoded average current:180mA
Print contrast 25%PCS
Ambient Light 70000Lux
Symbologies

1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5 Industrial 25 code,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT,MSI,Febraban(Brazil bank code)

2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec

operating temperature -20℃ to 55℃
storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Transport vibration test 10H@125RPM
