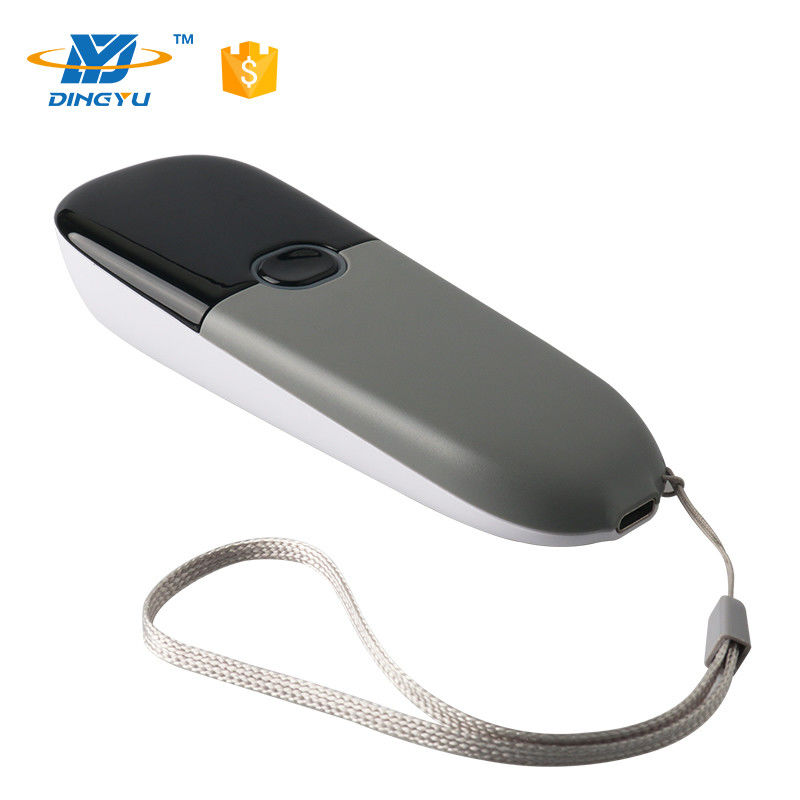

Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
  • Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    Product Details:

    Place of Origin: China
    Brand Name: DYscan
    Certification: CE,FCC, RoHS,
    Model Number: DI9040-1D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Neutral Packing
    Delivery Time: 3- 10 work days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000pcs per month
    Contact Now
    Detailed Product Description
    Scan Type: Linear CCD CPU: 32-bit
    Resolution: 2500 Reading Precision: ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding Speed: 300times/s Depth Of Field: 30mm-600mm
    Weight: ≈80g(without Cable) Dimension: L142mm * W41.5mm * H43mm
    Communication Mode: USB、Wireless 2.4G、Wireless Bluetooth 4.2 Light Source: Visible Red Light, 625±10nm


    Wireless 1D Bluetooth 2.4G Barcode Scanner Linear CCD Image Code Scanner




    DI9040-1D is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD
    image recognition technology. It can easily read the paper, goods, screen and other media barcodes.
    Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express
    delivery, inventory management, food traceability, asset inventory, etc.

    Features

    Wired and wireless connection, support USB and wireless 2.4G mode, can be switched easily.
    Read all mainstream 1D barcodes in the market easily.(3mil)
    Ultra-low power consumption, continuous working time 18h.
    100,000 data storage capacity.
    Bluetooth 4.2, intelligent automatic connection when it’s beyondrange, not manual setting.
    Mode: Bluetooth(HID,SPP,BLE), wired, wireless 2.4G, connected with PC, mobile phone easily.Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    Performance

    Scan Type Linear CCD
    Light Source Visible red light, 625±10nm
    CPU 32-bit
    Resolution 2500
    Reading precision ≥3mil/0.076mm(PCS90%,Code 39)
    Decoding speed 300times/s
    Depth of field 30mm-600mm
    Scan Mode Manual ,Continuous, Auto Sense, Fashing
    Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90%
      Pitch:±60°,Roll: ±30°,Skew: ±60°
    Print Contrast Signal ≥20%
    Ambient Light Dark environment, indoor natural light
    Wireless communication mode Synchronization , storage
    Wireless transmission distance 2.4GHz,200meters; Bluetooth 30meters(Open distance)
    Storage 16Mb(over 100,000 Product code)
    Battery capacity 1500mAh
    Battery charging time About 6 hours
    Continuous working time ≥18 hours
    Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.


    Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    Physical Parameter

    Weight ≈80g(without cable)
    Dimension L142mm * W41.5mm * H43mm
    Communication Mode USB,Wireless 2.4G,Wireless Bluetooth 4.2
    Interface Type Micro USB
    Power Supply DC 5V@100mA(work)


    Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    Environmental

    Operating temperature 0℃ to 50℃
    Storage temperature -30℃ to 60℃
    Humidity 5% to 95%(non-condensing)
    Drop Height 1.5m
    Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
    High Temp. 60℃
    Low Temp. -20℃
    Transport vibration Test

    10H@125RPM



    Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution

    Application

    ▅ Supermarket ▅ Warehouse
    ▅ Mobile payment ▅ Retail chain
    ▅ Courier ▅ Health care


    Linear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 ResolutionLinear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 ResolutionLinear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 ResolutionLinear CCD Image Code Wireless Barcode Scanner 1D Bluetooth 2.4G 2500 Resolution
    FAQ:

    Q1: How do you make sure the high quality barcode scanner?
    DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
    Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
    All our barcode scanners pass CE,FCC,ROSH certifications etc.

    Q2: How do you make quality control?
    DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

    Q3: How long is the warranty time of barcode scanner?
    DYscan: 12 months

    Q4: How to control the performance stable?
    DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

    Q5: Can you provide OEM or ODM service for barcode scanner?
    DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
