| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DP8500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Neutral Packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | CPU: | 32-bit |
|---|---|---|---|
| Resolution: | ≥5mil/0.127mm(PCS90%,Code 39) | Decoding Speed: | 10cm/s |
| Depth Of Field: | 0-350mm | Weight: | 190g ( Without Cable) |
| Dimension: | 92.33mm L *84.74mm W * 124.61mm H | Communication Mode: | USB |
| High Light: | laser handheld scanner,laser wireless barcode scanner |
||

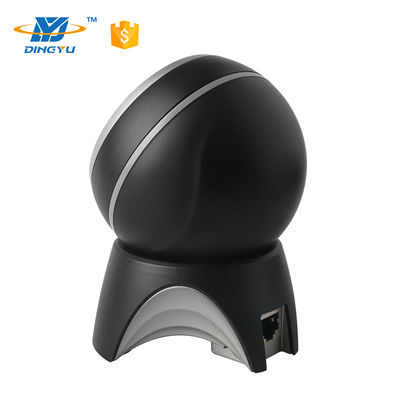

2D cmos black silk omnidirectional mini Desktop Barcode Scanner for supermarkets retailers
DP8500 is a high performance platform with leading CMOS image recognition technology and intelligent image recognition system.
It can scan universal 1D 2D codes, read the paper, goods, screens, other media barcodes.
Compact design, beautiful appearance with efficient reading performance, provide users with excellent experience.
|
Physical Parameter |
|
|
Weight |
190g ( Without cable) |
|
Dimension |
92.33mm L *84.74mm W * 124.61mm H |
|
Interface type |
USB, RS232 |
|
Communication way |
TTL-232 , USB (HID-KBW,USB-COM) |
|
Power supply |
DC 5V@470mA(work) |
|
Performance |
|
|
Scan type |
CMOS |
|
Light source |
Aiming: 617 nm LED ; illumination:6500K LED |
|
CPU |
32-bit |
|
Optical Resolution |
640*480 |
|
Resolution |
≥5mil/0.127mm(PCS90%,Code 39) |
|
Scan speed |
10cm/s |
|
Depth of field |
0-350mm |
|
Scan mode |
Auto sense |
|
Scan angle |
Roll360°, Pitch±45°, Skew±32° |
|
Print contrast signal |
≥25% |
|
Ambient light |
Dark, Indoor natural light |
|
Symbologies |
1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
|
Environmental |
|
|
Operating temperature |
-20℃ to 50℃ |
|
Storage temperature |
-40℃ to 70℃ |
|
Humidity |
5% to 95%(non-condensing) |
|
Drop Height |
1.2m |
|
Transport vibration Test |
10H@125RPM |
|
Accessories List |
|
|
Data cable |
USB cable, used to connect the DP8500 and the information receiving host. |
|
|
RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable. |
FAQ:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
