| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DI9130-1D |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 60*35.5*23.5cm/50pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | Linear CCD | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 300times/s | Depth Of Field: | 30mm-700mm |
| Scan Mode: | Manual ,Continuous, Auto Sense, Flashing | Print Contrast Signal: | ≥20% |
| Storage: | 16Mb（over 100,000 Product Code） | Battery Capacity: | 1200mAh |
| Symbologies: | 1D | Dimension: | L130mm * W46.5mm * H28.5mm |
| High Light: | 328feet Transmission Wireless Barcode Scanner,1200mAh Wireless Barcode Scanner,Cordless 1D Laser Barcode Reader |
||
2D Portable Barcode Scanner

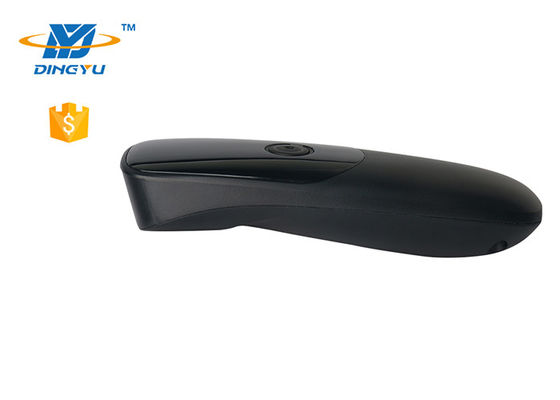

DI9130-1D is a high-performance 1D bluetooth and wireless 2.4G barcode scanner with leading CCD image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Performance
| Scan Type | Linear CCD |
| Light Source | Visible red light, 625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed | 300times/s |
| Depth of field | 30mm-700mm |
| Scan Mode | Manual ,Continuous, Auto Sense, Flashing |
| Indicator | LED, Buzzer, Vibration |
| Scan angle | Pitch:±60°,Roll: ±30°,Skew: ±60° |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 1200mAh |
| Battery charging time | About 3.5 h |
| Continuous working time | ≥12 hours |
| Symbologies |
UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
Physical Parameter
| Weight | ≈70g(without cable) |
| Dimension | L130mm * W46.5mm * H28.5mm |
| Communication Mode | USB-KBW,Wireless 2.4G,Wireless Bluetooth |
| Interface Type | Type C |
| Power Supply |
DC 5V@80mA(work) |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |
Detail Image
