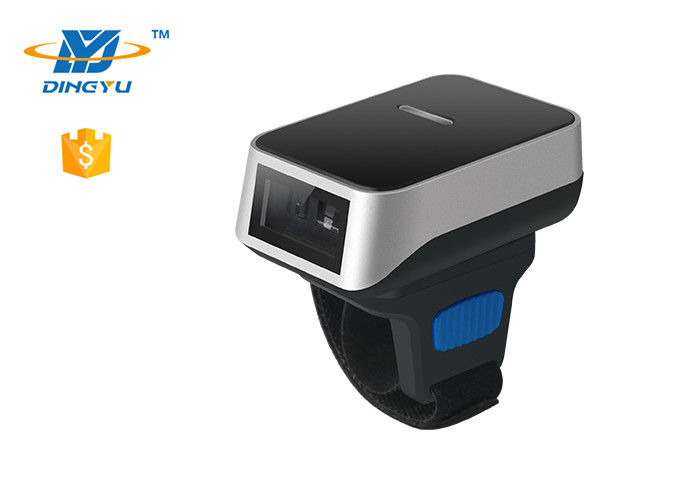

Linear CCD 2.4GHz Wireless Ring Barcode Scanner Symcode 1D

Linear CCD 2.4GHz Wireless Ring Barcode Scanner Symcode 1D

  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
  • Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D
Product Details:
Place of Origin: China
Brand Name: DYscan
Certification: CE ROHS FCC IEC
Model Number: DI9010-1D
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: negotiable
Packaging Details: 60*35.5*23.5cm/50pcs /Carton
Delivery Time: 5-7days
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Scan Type: Linear CCD Resolution: ≥4mil/0.1mm(PCS90%,Code 39)
Decoding Speed: 300times/s Depth Of Field: 60mm-500mm
Scan Mode: Manual ,Continuous, Flashing, Command Trigger Print Contrast Signal: ≥25%
Storage: 16Mb(over 100,000 Product Code) Battery Capacity: 360mAh
Symbologies: 1D Dimension: L51.5mm * W35mm * H45mm
High Light:

Linear CCD Ring Barcode Scanner

,

2.4GHz Wireless Ring Barcode Scanner

,

Symcode 1D Bluetooth Barcode Scanner

2D Portable Barcode Scanner


DI9010-1D is a high-performance 1D bluetooth barcode scanner with leading Laser recognition technology.
It can easily read the paper, goods and other barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.



Feature

  • Wearable design, widely used in warehouse, express.
  • Read all mainstream 1D barcodes in the market easily.(4mil)
  • 100,000 data storage capacity.
  • Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
  • Mode: Bluetooth(HID,SPP,BLE), wired, connected with PC, mobile phone easily.


Performance



Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 1500
Start time 4s
Resolution ≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 60mm-500mm
Scan Mode Manual ,Continuous, Flashing, Command trigger
Indicator LED, Buzzer, Vibration
Scan angle Roll:±30°,Pitch:±60°or greater,Yaw:±60°or greater
Print Contrast Signal ≥25%
Ambient Light Dark environment, indoor natural light
Wireless communication mode Synchronization , storage
Wireless transmission distance 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance)
Storage 16Mb(over 100,000 Product code)
Battery capacity 360mAh
Battery charging time About 1.5 h
Continuous working time ≥7.5 hours
Symbologies

UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.



Physical Parameter



Weight ≈35g(without cable)
Dimension L51.5mm * W35mm * H45mm
Communication Mode USB-KBW ,Wireless bluetooth
Interface Type Type C
Power Supply

DC 5V@110mA(work)



Environmental



Operating temperature -20℃ to 55℃
Storage temperature -20℃ to 60℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Temp. Test 30 minutes for high Temp., 30 minutes for low Temp.,
High Temp. 60℃
Low Temp. -20℃
Transport Vibration Test 10H@125RPM



Detail Image

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 0
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 1
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 2
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 3
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 4
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 5
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 6
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 7
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 8
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 9
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 10
Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 11

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 12



Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 13

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 14

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 15

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 16

Linear CCD  2.4GHz Wireless Ring Barcode Scanner Symcode 1D 17
