| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS5210B |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 56*41*43cm/50pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 35CM/S | Depth Of Field: | 3mil：50~130mm，13mil：50~270mm |
| Scan Mode: | Manual , Auto Sense | Print Contrast Signal: | ≥20% |
| Storage: | 16Mb（over 100,000 Product Code） | Battery Capacity: | 2200mAh |
| Symbologies: | 1D /2D/QR CODE | Dimension: | L161mm * W63mm * H80mm |
| High Light: | Warehouse Handheld 2d Barcode Scanner,150m Handheld 2d Barcode Scanner,3mil Wireless Barcode Scanner |
||

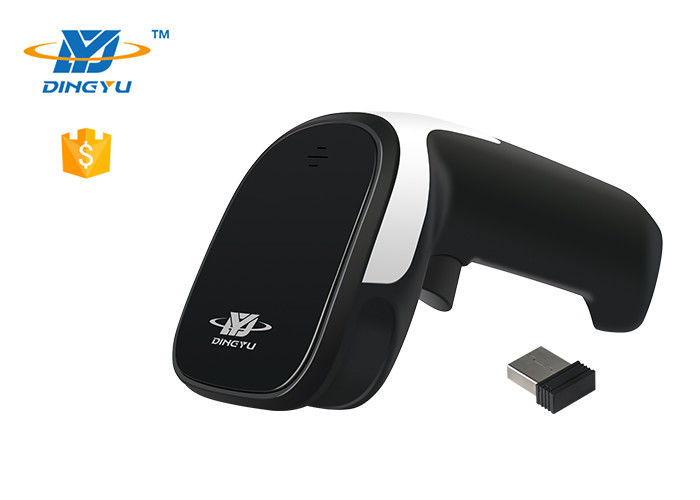

2D Handheld Barcode Scanner
DS5210B is wireless 2.4G and bluetooth 2D handheld barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)
☆ Interface: USB, wireless 2.4G, Bluetooth.
☆ Dual mode: wired, wireless, Ultra-low power consumption, continuous working time 16h.
☆ Transmission distance 150m, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed | 35CM/S |
| Depth of field | 3mil:50~130mm,13mil:50~270mm |
| Scan Mode | Manual , Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage | 16Mb(over 100,000 Product code) |
| Battery capacity | 2200mAh |
| Battery charging time | About 5 hours |
| Continuous working time | ≥16hours |
| Symbologies |
1D:Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
Physical Parameter
| Weight | ≈151g(without cable) |
| Dimension | L161mm * W63mm * H80mm |
| Communication Mode | USB, Wireless 2.4G, Bluetooth |
| Interface Type | USB |
| Power Supply |
DC5V input, Standby current:50mA,Decoding current:120mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |
