| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DS2806-2D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100, 000pcs/month |
| Reading Precision: | ≥4mil/0.1mm(PCS90%,Code 39) | Resolution: | 640*480 |
|---|---|---|---|
| Scan Type: | Cmos | Speed: | 25CM/S |
| Depth Of Field: | 35-300mm | Size: | L163.5mm * W65.0mm * H89.5mm |
| Weight: | ≈170g | Print Contrast Signal: | 25% |
| Scan Mode: | Manual , Auto Sense, Continuous | CPU: | 32 Bit |
| High Light: | 25CM/S Handheld Barcode Scanner,Fast Decoding Handheld Barcode Scanner,Ergonomic USB Portable Barcode Scanner |
||

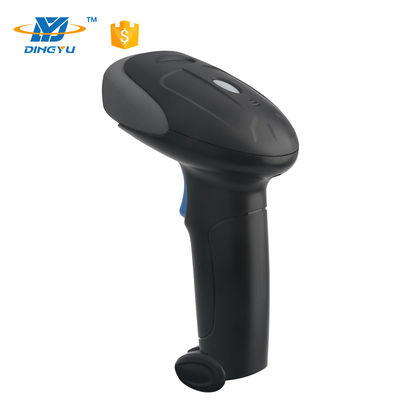

Most Popular Portable Wired Usb cable 1D 2D Bar Qr Code Reader handheld Barcode Scanner DS2806-2D
Product description
DS2806-2D is a high-performance 2D wired barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ High-performance processor, fast decoding. (4mil)
☆ Support multiple languages and systems.
☆ Interface: USB,RS232
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Parameter
| Scan Type | CMOS |
| Light Source | Red aim light, white fill light |
| CPU | 32-bit |
| Resolution | 640*480 |
| Reading precision | ≥4mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 25cm/s |
| Depth of field | 35mm-300mm |
| Scan Mode | Manual , Auto Sense, Continuous |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±360° | |
| Skew: ±55° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D: Codabar,Code39,Code32,Interleaved 2 of 5(ITF25),Industrial 2 of 5,Matrix 2 of 5,Code93,Code11,Code128,Gs1-128,UPC-A,UPC-E,EAN/JAN-8,EAN/JAN-13,ISBN,ISSN,GS1 databar,GS1 databar limited,GS1 databar expanded,ISBT 2D:PDF417,Micro PDF417,QR Code,Micro QR,Data Matrix,Aztec |
| Weight | ≈170g |
| Dimension | L163.5mm * W65.0mm * H89.5mm |
| Communication Mode | USB,RS232 |
| Interface Type | USB ,DB9 |
| Power Supply | DC 5V@280mA(work) |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
