| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DS5900B-2D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 1pcs/carton |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100, 000pcs/month |
| Reading Precision: | ≥3mil/0.076mm(PCS90%,Code 39) | Resolution: | 640*480 |
|---|---|---|---|
| Scan Type: | Cmos | Speed: | 65CM/S |
| Depth Of Field: | 30-600MM | Battery: | 2000MAH |
| Comunication Mode: | Wireless 2.4G And Bluetooth | Size: | L165.5mm * W 63.5mm * H92.3mm |
| Battery Charging Time: | 4.5h | Continuous Working Time: | 12h |
| High Light: | 3mil USB Wired Barcode Scanner,65CM/S USB Wired Barcode Scanner,FCC QR Barcode Scanner |
||

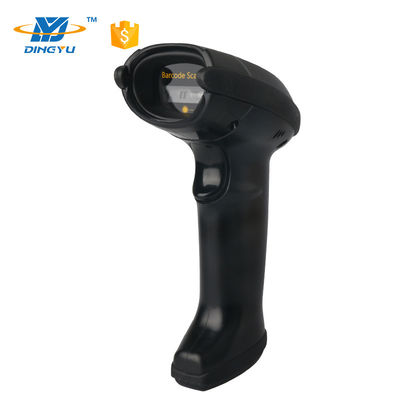

Cheapest Price 1D 2D QR Code USB Wired Wireless Handheld Barcode Scanner DS5900B-2D
Product description
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D 2D barcodes in the market easily. (3mil)
☆ Interface: USB, wireless 2.4G, Bluetooth.
☆ Dual mode: wired, wireless, Ultra-low power consumption.
☆ Transmission distance 100m, intelligent automatic connection when it’s beyond range, not manual setting.
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Parameter
| Scan Type | CMOS |
| Light Source |
Red Light LED 525±10nm(aim), 5600K LED ( Lighting) Note: global exposure camera, lighting brightness will change automatically according to different reading distance. |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 65CM/S |
| Depth of field | 30-600mm |
| Scan view | 41° * 31° |
| Scan mode | Manual , Continuous, Auto Sense |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater) |
| Print Contrast Signal | ≥15% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,100m (Open distance), Bluetooth 30m ( Open distance) |
| Storage | 350Kb(over 20,000 Product code) |
| Battery capacity | 2000mAh |
| Battery charging time | Around 4.5h |
| Continuous working time | ≥16 h |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban (Brazil bank code),GS1 Composite, Japan post, Postnet, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
| Weight | ≈160g(without cable) |
| Dimension | L165.5mm * W 63.5mm * H92.3mm |
| Communication Mode |
USB, Wireless 2.4G, Bluetooth 4.2 2 |
| Interface Type | B type USB |
| Power Supply | DC5V input, decoding current:200mA |
Features
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
