| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DE2290D |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | 188mm L * 95mm W * 40mm H |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Depth Of Field: | 30-550mm | CPU: | 32 Bits |
|---|---|---|---|
| Scan Type: | CMOS | Resolution: | 3mil Code 39 |
| Dimension: | 21.35mm L *15.50mm W * 11.40mm H | Speed: | 65cm/s |
| Scan Mode: | Manual ,continuous, Auto Scan | View: | 41° * 31° |
| High Light: | USB Rs232 2D Scan Engine,CMOS 2D Scan Engine,DC3.3V 2d Barcode Scanner Module |
||

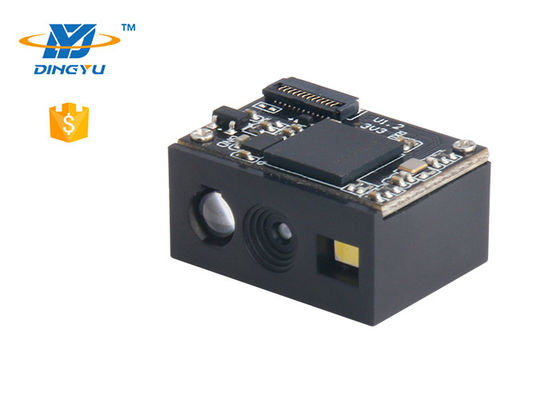

High Speed USB rs232 com Barcode Reader mini 2d barcode scanner module DE2290D
Description
DE2290D is a high-performance 300,000 global pixel embedded 2D image module with advanced CMOS image recognition technology, intelligent image recognition system with excellent reading performance, you can easily read barcodes on media such as paper, merchandise, and screen.
The integrated compact design allows for easy insertion into a wide range of equipment.
Widely used in various types of self-service machines, price checking machines, lockers,etc.
Features
1. Small size, self-contained fixing holes for easy integration into other equipment.
2. Optional multiple interfaces {USB (KBW, COM), TTL}, suitable for different application.
3. Good reading performance, easy to read both screen and paper barcodes.
4. High-definition camera, can read smaller and complicated 1D 2D barcodes.
5. Support multiple working modes (Manual, Auto sense, Continuous).
Function advantage
1. Support multi-language output directly, such as Russian, Japanese,Traditional Chinese, Simplified Chinese, Korean, Thai, etc.
Parameter
| Communication | USB(USB-KBW,USB-COM,HID-POS),TTL |
| Scan Type | CMOS,Global shutter |
| Resolution | 300,000 pixel, 640*480 |
| Reading precision | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of field | 30mm~550mm(Different barcode range) |
| Decoding speed | 65CM/S |
| Scan Mode | Manual , Continuous, Auto Sense, Command control |
| Prompt method | LED indicator light, buzzer (external circuit) |
| Field of view | 41° * 31° |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Roll: ±360°,Pitch:±60°,Skew: ±55° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7), MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban Brazil Bank Code,GS1 Composite, etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Japan post, Postnet, etc. |
| Weight | About 3.5g |
| Dimension | 21.35mm L *15.50mm W * 11.40mm H |
| FPC cable length | 5CM (FPC single-sided cable) |
| Interface Type | FPC 12PIN Pitch 0.5 |
| Power Supply | DC3.3V |
| Current | 200mA(Average Work), 95mA(Standby),38mA(Sleep) |
