| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DP8580M |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | ≥3mil/0.1mm（PCS90%,CODE 39） |
|---|---|---|---|
| Decoding Speed: | 1280*800 | Depth Of Field: | 0-650mm |
| Scan Mode: | Continuous , Auto Sense | Print Contrast Signal: | ≥20% |
| Dimension: | L152mm * W84.12mm * H153.2mm | Interface Type: | USB, RS232 |
| Weight: | 508.6g（without Cable) | OCR: | Yes |
| High Light: | OEM RS232 Desktop Barcode Scanner,Desktop Barcode Scanner Omnidirectional,RS232 handfree Barcode Scanner |
||

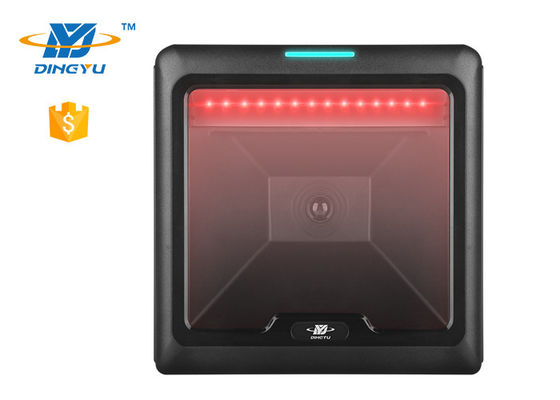

2D Desktop Barcode Scanner
2D OCR passport wired handfree Omnidirectional USB RS232 desktop Barcode Scanner DP8580M
DP8580M is a desktop 2D image scanning barcode scanner.
It adopts advanced CMOS image recognition technology, intelligent image recognition system, and is equipped with a 1 million pixel global high-definition camera, which can easily read 1D 2D codes on paper, screen and other media.
It can be used in chain stores, pharmacies, tobacco hotels and grocery stores, etc.
>High-speed movement tolerance of 1 m/s, suitable for high-traffic scanning requirements.
>Large wide-angle lens, large viewing angle, effectively improve code reading efficiency.
>1 million global exposure camera, easy to read 1D and 2D codes of various sizes, and can adapt to more complex environments;
>The bottom and back designs are designed to be fixed or hung and positioned to meet different installation requirements.
>High-performance MCU, suitable for continuous high-density operations.
>Support reading ID card passport OCR.
>USB and RS232 dual interfaces. ( Optional)
Performance
| Scan type | CMOS |
| Light Source | Red light |
| Pixel | 1280*800 |
| Resolution | ≥3mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 100CM/S |
| Depth of field | 0-650mm ( Different barcode types) |
| Scan Mode | Continuous , Auto sense, Command trigger |
| Scan angle |
Roll:±360°,Pitch:±70°or greater,Yaw:±65° Horizontal 62°× Vertical 41° |
| Print Contrast Signal | ≥20% |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, Chinese ID Card OCR, etc. |
Physical Parameter
| Weight | ≈508.6g(without cable) |
| Dimension | L152mm * W84.12mm * H153.2mm |
| Communication Mode | USB(USB-KBW,USB-COM)/ RS232 |
| Cable length | 1.8m, 10Pin crystal-USB |
| Power Supply | DC 5V@280mA(work) |
Environmental
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transportation test | 10H@125RPM |
Detail Image
