| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DP8420 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Scan Type: | CMOS | Decoding Speed: | ≥5mil/0.127mm(PCS90%,Code 39) |
|---|---|---|---|
| Interface Type: | USB (RS232 Optional) | Scan Mode: | Continuous, Auto Sense, Command Control |
| Depth Of Field: | 0mm-300mm | Resolution: | 640*480 |
| Scan Speed: | 25cm/s | NFC ( Optional): | Only Read 13.56MHZ NFC Card Number |
| View Angle: | 45°Level*40°vertical | ||
| High Light: | Tabletop pos barcode scanner,25cm/s pos barcode scanner,USB RS232 table top barcode scanner |
||

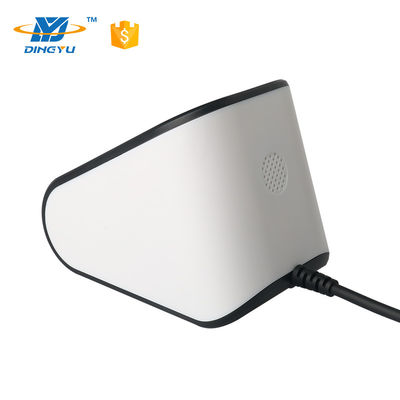

Desktop USB NFC Mobile Payment 2D Barcode scan Box QR Code pos system barcode scanner DP8420
Product Description
DP8420 is a professional 2D scanning platform.
It can read various screen brightness of the phones 1D 2D barcodes.
Large window design, large viewing angle, support all kinds of screen size mobile phones. Excellent performance provides users with very comfortable using experience.
Features
☆ Read all mainstream 1D 2D barcodes in the market easily.
☆ Support USB barcode information transmission. ( languages customization)
☆ High brightness, dark environment scanning, low power consumption.
☆ Support multiple systems and languages, secondary development.
Parameter
| Interface | USB |
| Scan Type | CMOS |
| Light Source | 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| View angle | 45°Level*40°vertical |
| NFC | Support 13.56MHZ NFC card reading ( Optional) |
| Reading precision | ≥5mil/0.127mm(PCS90%,Code 39) |
| Depth of field | 0mm-300mm |
| Scan speed | 25cm/s |
| Scan Mode | Auto Sense, Continuous |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±45° | |
| Roll: ±360° | |
| Skew: ±40° | |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| NFC (Optional) |
NFC card--- Mifare one (M1),S50,S70,CPU, etc. Supported protocol--- 13.56MHZ ISO15693, ISO14443-A, ISO14443-B(customization), etc. Scan distance---0-50mm ( below the top case window) Note: Only read card number, write function is not supported. |
| Symbologies |
1D:Code 39,Code 93,UPC-A,UPC-E,EAN-8,EAN-13,ITF2-5,Code 128, ISBN 2D: QR Code, Data matrix, PDF417 |
| Weight | ≈239g(USB) |
| Dimension | (L)125mm * (W)88mm *(H)100mm |
| Communication Mode | USB (USB-KBW,USB-COM) |
| Cable length | 1.5m |
| Power Supply | DC 5V @400mA(Work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transportation test | 10H@125RPM |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
