| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DP7618S |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Paper box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Product Name: | DP7618S | Net Weight: | ≈95g（Without Cable） |
|---|---|---|---|
| Product Dimension: | 78.3mm L* 67.3mm W * 52.7mm H | Communication Way: | USB/RS232/TTL |
| Resolution: | ≥4mil/0.1mm（PCS90%,CODE 39） | Scan Tolerance: | 60CM/S |
| Scan Mode: | Auto Scan, Continuous | Scan Angle: | Roll：±360°, Pitch：±60°, Yaw：±55° |
| Depth Of Field: | 10-250mm | NFC: | Optional |
| High Light: | desktop Fixed Mount barcode scanner,60CM/S Fixed Mount barcode scanner,OEM Embedded Barcode Scanner |
||

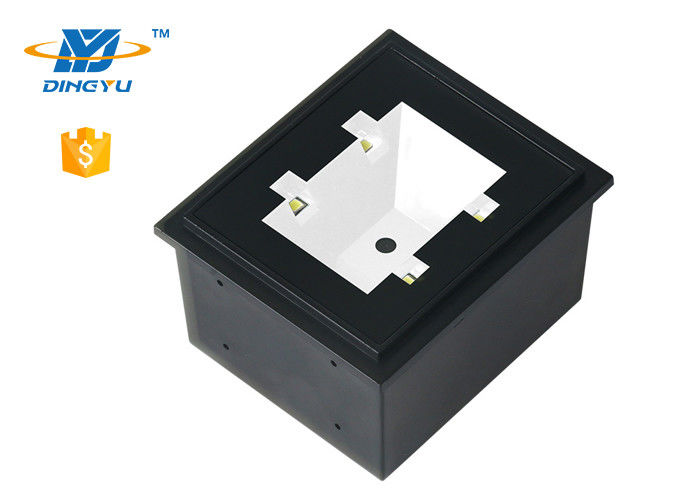

Fixed Mount barcode scanner NFC 1D 2D qr code best selling OEM Embedded Barcode Scanner DP7618S
Product introduction
DP7618S is high performance 2D payment desktop scanner.
It can read various screen brightness of the phones 1D 2D barcodes.
Large window design, large viewing angle, support all kinds of screen size mobile phones. Excellent performance provides users with very comfortable using experience.
Description
☆ Read all mainstream 1D 2D barcodes in the market easily,mainly for QR payment.
☆ High brightness, dark environment scanning, low power consumption.
☆ Support multiple systems and languages.
☆ Support USB and RS232 communication ( Can be switched by setting code and cable).
* Queue numbering machine
* Self-service machine
* Ticket checking machine
* Bus validator
* Subway gate
* Access control
* Turnstile
* Kiosk
| Scan Type | CMOS |
| Light Source | 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| View angle | Horizontal 60°, vertical 50°, diagonal 72° |
| Reading precision | ≥4mil/0.1mm(PCS90%,CODE 39) |
| Depth of field | 10-250mm |
| Scan speed | 60cm/s |
| Scan Mode | Auto Sense, Continuous, command trigger |
| Scan angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% |
| Pitch:±60° | |
| Roll: ±360° | |
| Skew: ±55° | |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| NFC (Optional) |
NFC card--- Mifare one (M1),S50,S70,CPU, etc. Supported protocol--- 13.56MHZ ISO15693, ISO14443-A, ISO14443-B(customization), etc. Scan distance---0-50mm ( below the top case window) Note: Only read card number, write function is not supported. |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5), Codabar(NW-7),MSI,GS1 Databar (Omnidirectional, Limited, Expanded), China Post, Tepepen, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
| Weight | ≈95g(Without cable) |
| Dimension | 78.3mm L* 67.3mm W * 52.7mm H |
| Communication Mode | USB(USB-KBW,USB-COM),RS232 |
| Cable length | 1.5m |
| Power Supply | DC 5V @240mA(Work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transportation | 10H@125RPM |
RFQ:
Q1. What’s your main products ?
- Laser Barcode Scanner
- Image CCD CMOS Barcode Scanner
-Barcode module
-Portable barcode scanner
-Handheld barcode scanner
-Desktop/flatbed barcode reader
-Ring type barcode reader
Q2. Are you a manufacturer?
Yes, our factory is located in Dongguan .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
