| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DE2390 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Decoding Speed: | 65cm/s | Depth Of Field: | 50-750mm |
|---|---|---|---|
| Interface Type: | USB，TTL | Dimension: | 21.5mm L* 15.9mm W * 11.30mm H |
| Scan Mode: | Manual, Auto Sense, Continuous | Field Of View: | Horizontal 40°× Vertical 27° |
| Print Contrast Signal: | ≥20% | Camera: | 1280*800 Pixel |
| OCR: | Passport And ID Card Number | Resolution: | 3mil Code 39 |
| High Light: | TTL 2D Barcode Scanner Module,65cm/s 2D Barcode Scanner Module,Kiosk fixed barcode scanner |
||
Description

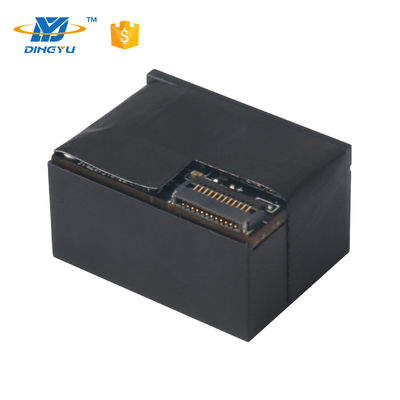

DE2390 is a high-performance embedded 2D barcode module with advanced CMOS image recognition technology.
1 million pixel global camera with excellent reading performance, can easily read paper, screen and other barcodes on the media.
It has OCR function, which support reading some ID and passport characters.
Features
>Small size, with fixed holes, easy to integrate into most equipment.
>Optional multiple interfaces USB-KBW, USB-COM, TTL, HID-POS.
>Good reading performance, support 1D 2D paper screen barcodes.
>Long distance scan, the farthest reading distance can reach more than 2.5 m.
>Support manual, continuous, auto scan mode.
>Support customized functions.
Parameter
| Size | 21.5mm L* 15.9mm W * 11.30mm H |
| Interface |
USB,USB-com(Need driver) ,TTL (USB protocol:Full Speed ,USB 2.0) |
| Light Source | Lighting: white LED Aiming: Red LED,wavelength coverage 525nm |
| CMOS | 1280*800 CMOS |
| CPU | ARM32-bit |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Depth of field | 50mm~750mm ( Different barcode types) |
| Scan mode | Trigger mode,Auto scan, Continuous, Command control |
| prompting mode | LED indicating lamp,buzzer |
| Reading angle | Roll:±360°,Pitch:±60°or greater,Yaw:±55°or greater) |
| visual angle | Horizontal 40°× Vertical 27° |
| Motion tolerance | 65cm/s |
| Power input | 3.3V, standby current:95mA,Decoded average current:200mA |
| Print contrast | 20%PCS |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc. |
| operating temperature | -20℃ to 50℃ |
| storage temperature | -40℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport vibration test | 10H@125RPM |
| ▅ Lockers | ▅ Mobile coupons, tickets |
| ▅ Medical research | ▅ Mobile payment barcode scanning |
| ▅ Lottery machines | ▅ Self-service terminals |
| ▅ Queuing calling equipment | ▅ Self-service vending machines |
| ▅ Microcontroller development |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
