| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DS5220BL-2D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 56*41*43cm/10pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | 3mil |
|---|---|---|---|
| Decoding Speed: | 35CM/S | Depth Of Field: | 3mil：50~130mm，13mil：50~270mm |
| Scan Mode: | Manual , Auto Sense | Print Contrast Signal: | ≥20% |
| Battery Capacity: | 4800mAh | Symbologies: | 1D /2D/QR CODE |
| Dimension: | 60*115*170mm Scanner | ||
| High Light: | auto detective industrial handheld barcode scanner,4800mah industrial handheld barcode scanner,industrial handheld 2d barcode scanner |
||

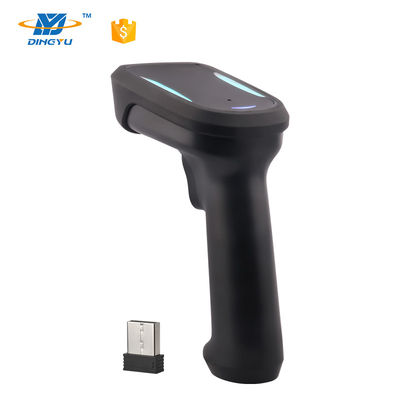

2D Handheld Barcode Scanner
DS5220BL-2D is an industrial handheld 2D wireless bluetooth barcode scanner with light. It has excellent reading performance and can easily read barcodes on different media such as paper, commodities, and screen.
This product adopts enhanced wireless 2.4G transmission technology, the effective distance of outdoor open environment can reach more than 60 m, and it can support both wired and wireless transmission methods.
It can be mainly used in industrial production, mobile payment, commodity barcode scanning, inventory, etc.
> Highly integrated two-dimensional decoding structure, anti-drop, anti-vibration.
> Using high-performance MCU, it can easily identify all mainstream 1D 2D barcodes in the market.
> 300,000 global exposure camera, automatic exposure, suitable for complex use environment.
> Easily read barcodes above 3MIL to meet daily scanning needs.
> Enhanced wireless 2.4G transmission technology, reliable outdoor transmission distance can reach more than 60 m, and support wired transmission without switching.
>Support wireless Bluetooth 4.2 communication mode, support HID, SPP, BLE three communication protocols.
>Support multiple working modes (manual, induction, continuous) to meet different reading needs.
>Support online upgrade, custom development and secondary development.
>With vibration prompt, scanning code is clearer.
Performance
| Scan Type | CMOS |
| Light Source | Red Light LED 525±10nm(aim), 5600K LED ( Lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Start time | 4s |
| Resolution | ≥3mil/0.076mm(PCS90%,CODE 39) |
| Decoding speed |
65CM/S |
| Depth of field |
10mm~550mm |
| Scan Mode |
Manual , Auto Sense,Continuous |
| Scan angle | Roll:±360°,Pitch:±60°or greater,Yaw:±70°or greater) |
| Print Contrast Signal |
≥15% |
| Ambient Light | Dark environment, indoor natural light |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | 2.4GHz,150meters(Open distance), Bluetooth 30m ( Open distance) |
| Storage |
4Mb(over 15,000 Product code) |
| Battery capacity |
4800mAh |
| Battery charging time | About 6.5 hours |
| Continuous working time | ≥36hours |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, Febraban,GS1 Composite etc. |
Physical Parameter
| Weight |
≈217.1g(without cable) |
| Dimension |
L169.08mm * W67.1mm * H90.96mm |
| Communication Mode |
USB, Wireless 2.4G, Bluetooth 4.2 |
| Interface Type | B type USB, 1.8m cable |
| Power Supply |
DC 5V input, decoding current:200mA |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport Vibration Test | 10H@125RPM |
Detail Image
