| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DP7611 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Paper box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Product Name: | DP7611 | Product Dimension: | 65.2mm L* 61mm W * 29mm H |
|---|---|---|---|
| Communication Way: | USB, TTL | Power Scan Type: | CMOS |
| Resolution: | ≥4mil/0.1mm（PCS90%,CODE 39） | Scan Tolerance: | 35CM/S |
| Scan Mode: | Auto Scan | Scan Angle: | Roll：±360°, Pitch：±60°, Yaw：±55° |
| Depth Of Filed: | 0-260mm | ||
| High Light: | 2d mobile qr code scanner,usb mobile qr code scanner |
||

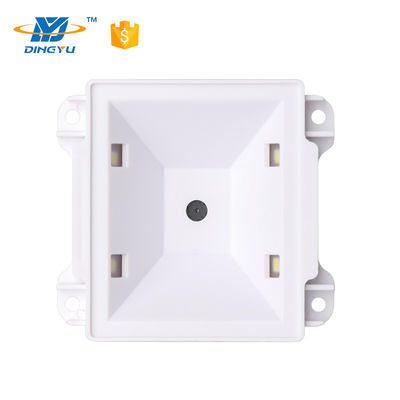

2D mobile QR code payment auto scan service machine Kiosk Desktop barcode scanner
Product introduction
DP7611 is a 2D cost-effective desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in kiosk, turnstiles, vending machines, ticket checking machines.
| Scan Type | CMOS |
| Image sensor | 640*480 |
| Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 35cm/s |
| View | 66° |
| Depth of field | 0-260mm |
| Scan Mode | Auto sense, Command trigger |
| Scan angle | Roll:±360°, Pitch:±60°, Yaw:±55° |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc. |
| Weight | ≈27g |
| Dimension | 65.2mm L* 61mm W * 29mm H |
| Communication way | USB(USB-KBW,USB-COM),TTL,RS232 |
| Interface type | 12PIN Pitch 0.5 FFC cable |
| 4PIN Pitch 1.25mm | |
| Power Supply | DC 5V@130mA(work) |
RFQ:
Q1. What’s your main products ?
- Laser Barcode Scanner
- Image CCD CMOS Barcode Scanner
- Barcode module
- Portable barcode scanner
- Handheld barcode scanner
- Desktop/flatbed barcode reader
- Ring type barcode reader
Q2. Are you a manufacturer?
Yes, our factory is located in Dongguan .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4. What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be credit in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1. Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
