|Place of Origin:||China|
|Brand Name:||DY SCAN|
|Certification:||CE, ROHS, FCC, IEC|
|Minimum Order Quantity:||1|
|Packaging Details:||Paper box|
|Delivery Time:||3-7 days|
|Payment Terms:||T/T, Paypal, Alibaba|
|Product Name:||DP7610||Net Weight:||30g（without Cable）|
|Product Dimension:||65.2mm L* 61mm W * 29mm H||Communication Way:||USB TTL Wiegand RS485|
|Power Scan Type:||CMOS||Resolution:||3MIL|
|Scan Tolerance:||65CM/S||Scan Mode:||AUTO SENSE|
|Scan Angle:||Roll：±360°, Pitch：±60°, Yaw：±55°|
wiegand embedded barcode scanner,
rs485 embedded barcode scanner,
2d embedded qr code scanner
Best USB Reader Scanner RS485 RS232 Wiegand Embedded 2D Barcode QR CODE Scanner

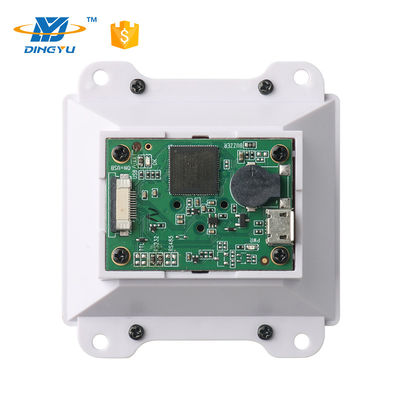

DP7610 is a 2D embedded desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in kiosk, turnstiles, vending machines, ticket checking machines.
> Good reading performance with soft light fill light.
> Support online upgrade, customized development and secondary development.
Product data sheet
|Depth of field||10-250mm|
|Scan Mode||Auto sense, Command trigger|
|Scan angle||Roll:±360°, Pitch:±60°, Yaw:±55°|
|Print Contrast Signal||≥20%|
|Ambient Light||Dark environment, indoor natural light|
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc.
2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc.
|Dimension||65.2mm L* 61mm W * 29mm H|
|Power Supply||DC 5V@150mA(work)|
|Operating temperature||-20℃ to 50℃|
|Storage temperature||-40℃ to 60℃|
|Humidity||5% to 95%(non-condensing)|
|Transport vibration Test||10H@125RPM|
