| Place of Origin: | China |
| Brand Name: | DYscan |
| Certification: | CE ROHS FCC IEC |
| Model Number: | DP8580M |
| Minimum Order Quantity: | 2pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 54*34*34CM/30pcs /Carton |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union,PAYPAL |
| Supply Ability: | 100000pcs/month |
| Scan Type: | CMOS | Resolution: | ≥5mil/0.127mm(PCS90%,Code 39) |
|---|---|---|---|
| Decoding Speed: | 640*480 | Depth Of Field: | 0-380mm |
| Scan Mode: | Continuous ,Auto Sense | Print Contrast Signal: | ≥25% |
| Symbologies: | 1D 2D | Dimension: | L86.7mm * W96.7mm * H143.6mm |
| Interface Type: | USB, RS232 | Weight: | 270g（without Cable) |
| High Light: | high speed 2d desktop barcode scanner,retail 2d desktop barcode scanner,cmos type barcode reader desktop |
||

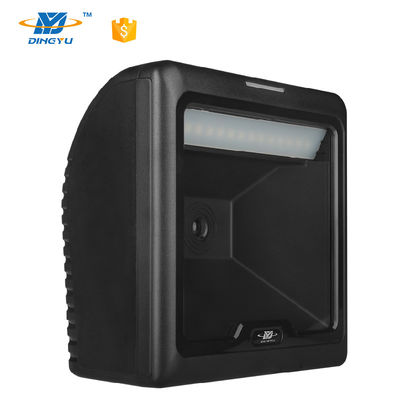

2D Desktop Scanner
DP8580M is a 1.0 mega pixel high performance 2D desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in large supermarkets, restaurant, chain stores, and grocery stores.
☆ Wide window design, auto sense scanning.
☆ 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.
Performance
| Scan Type | CMOS |
| Light Source |
light: red LED,wavelength 525nm |
| CPU | 32-bit |
| Resolution | 1280*800 (1.0 million Global exposure) |
| Start time | 4s |
| Resolution |
≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed |
120CM/S |
| Depth of field |
0mm~600mm |
| Scan Mode |
Continuous |
| Indicator |
buzzer |
| Scan angle | Roll360°, Pitch±45°, Skew±32° |
| Print Contrast Signal |
≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc. |
Physical Parameter
| Weight |
≈540g(without cable) |
| Dimension |
L84.0 mm * H151.5 mm * W151.5mm |
| Communication Mode |
USB(USB-KBW,USB-COM),RS232 |
| Interface Type |
10PIN crystal head |
| Power Supply |
DC 5V@280mA(work) |
Environmental
| Operating temperature | -20℃ to 55℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Transport Vibration Test | 10H@125RPM |
Detail Image
