| Place of Origin: | China |
| Brand Name: | DY SCAN |
| Certification: | CE, ROHS, FCC, IEC |
| Model Number: | DP8618 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Paper box |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 100,000pcs/month |
| Product Dimension: | 69mm L* 69mm W * 31mm H | Communication Way: | USB, RS232 |
|---|---|---|---|
| Resolution: | ≥4mil/0.1mm（PCS90%,CODE 39） | Scan Tolerance: | 60CM/S |
| Color: | White | Scan Angle: | Roll：±360°, Pitch：±60°, Yaw：±55° |
| Scan View: | Horizontal 60°, Vertical 50°, Diagonal 72° | Scan Mode: | Auto Scan. Continuous |
| Cable: | 1.5m | ||
| High Light: | USB RS232 2d qr code scanner,2d qr code scanner 60CM/S,Embedded oem barcode scanner module |
||
OEM 2d Qr Barcode Reader Embedded Apparaat Kiosk Scanner Module
Product introduction

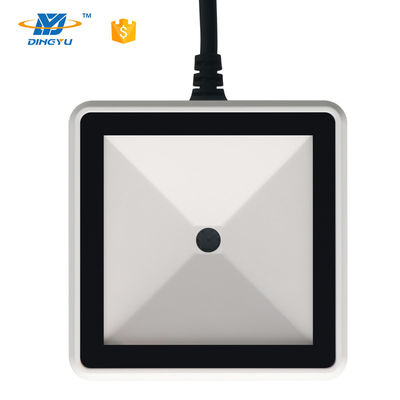

DP8618 is a 2D cost-effective desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screen and other media 1D 2D barcodes.
Widely used in kiosk, turnstiles, vending machines, ticket checking machines.
Product data sheet
| Scan Type | CMOS |
| Image sensor | 640*480 |
| Resolution | ≥4mil/0.1mm(PCS90%,CODE 39) |
| Decoding speed | 60cm/s |
| View | Horizontal 60°, vertical 50°, diagonal 72° |
| Depth of field | 10-250mm |
| Scan Mode | Auto sense, Command trigger |
| Scan angle | Roll:±360°, Pitch:±60°, Yaw:±55° |
| Print Contrast Signal | ≥20% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post, Tepepen, GS1 Composite etc. |
| Weight | ≈101g |
| Dimension | 69mm L* 69mm W * 31mm H |
| Communication way | USB(USB-KBW,USB-COM),RS232 |
| Power Supply | DC5V@240mA(work) |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Transport | 10H@125RPM |
* Queue numbering machine
* Self-service machine
* Ticket checking machine
* Bus validator
* Subway gate
* Access control
* Turnstile
* Kiosk
