| Place of Origin: | China |
| Brand Name: | Dingyu/ DY SCAN |
| Certification: | CE, ROHS, FCC, IEC, FDA |
| Model Number: | DS6100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Delivery Time: | 3-7 days |
| Payment Terms: | T/T, Paypal, Alibaba |
| Supply Ability: | 10000pcs/month |
| Weight: | 110g | Dimension: | L150mm * W70mm * H95mm |
|---|---|---|---|
| Communication Way: | DC 5V@130mA | CPU: | 32-bit |
| Resolution: | ≥4mil/0.1mm | Scan Tolerance: | 10CM/S |
| Depth Of Field: | 10mm-500mm | ||
| High Light: | cmos barcode scanner,usb handheld scanner |
||

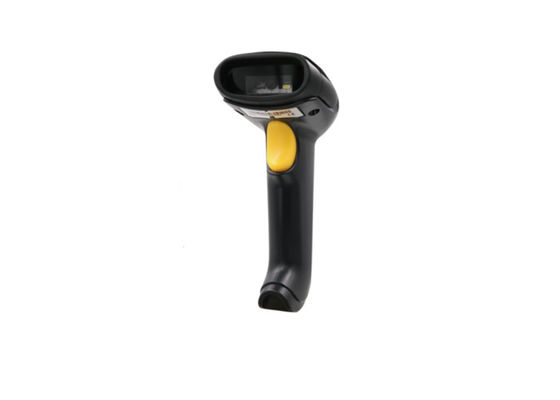

DS6100 2D Wired Barcode Scanner 10CM/S Scan Tolerance 10-500mm Depth Field
Product Description
DS6100 is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
☆ Ergonomic design, comfortable using, cost-effective.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Interface: USB.
☆ Support multiple languages and systems.
☆ Support USB barcode information transmission. ( languages customization)
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | ≈110g(without cable) |
| Dimension | L150mm * W70mm * H95mm |
| Interface Type | USB |
| Communication way | USB(USB-KBW,USB-COM) |
| Power supply | DC 5V@130mA(work) |
| Performance | |
| Scan type | CMOS |
| Light source | Red light LED 625±10nm(aim),5600K LEDs(lighting) |
| CPU | 32-bit |
| Resolution | 640*480 |
| Resolution | ≥4mil/0.1mm(PCS90%,Code 39) |
| Scan tolerance | 10CM/S |
| Depth of field | 10mm-500mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Roll360°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥25% |
| Ambient light | Dark, indoor natural light |
| Symbologies | 1D:UPC-A,UPC-E,EAN-8,EAN-13, Code 128, GS1-128, Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Codabar(NW-7),MSI, etc. 2D: QR Code,PDF417,Data Matrix,etc. |
| Environmental | |
| Operating temperature | -10℃ to 50℃ |
| Storage temperature | -30℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 4MIL | 30-60mm (PCS90%,Code 39) |
| 13MIL | 40-210mm (PCS90%,EAN-13) |
| 20MIL | 50-260mm (PCS90%,Code 39) |
| 40MIL | 130-500mm (PCS90%,Code 39) |
| 20MIL | 100-180mm (PCS90%,QR Code) |
| Accessories list | |
| Data cable | USB,connect the scanner to a host device |
