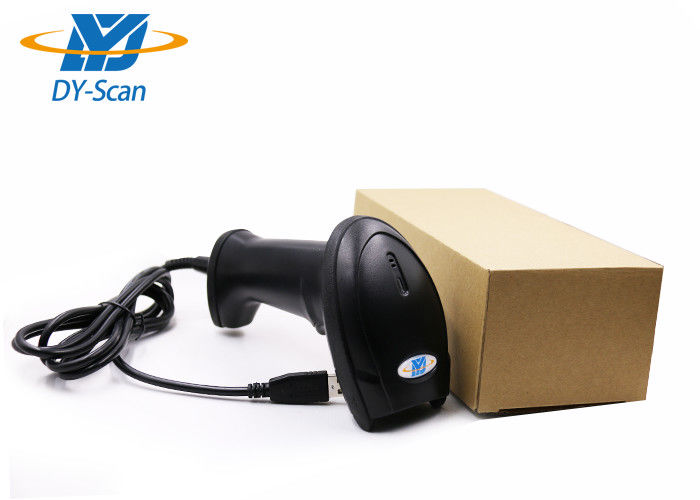

5 Mil Resolution Wired Barcode Scanner USB Two Dimensional Code Scanner

5 Mil Resolution Wired Barcode Scanner USB Two Dimensional Code Scanner

5 Mil Resolution Wired Barcode Scanner USB Two Dimensional Code Scanner

Product Details:

Place of Origin: China
Brand Name: DYscan
Certification: FC CE ROHS
Model Number: DS6200
Contact Now
Detailed Product Description
Interface Type: USB Communication Way: USB(USB-KBW、USB-COM)
Power Supply: DC 5V@280mA(work) Scan Type: CMOS
CPU: 32-bit Resolution: ≥5mil/0.127mm(PCS90%,Code 39)
Scan Tolerance: 25CM/S Depth Of Field: 10mm-500mm

Wired Handheld 2D Barcode Scanner Supermarket / warehouse QR Code 5mil Resolution



Product Description

DS6200 is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.



Features

☆ Ergonomic Industrial design, anti-glare, comfortable using.

☆ Read all the mainstream 1D 2D barcodes in the market easily. (3mil)

☆ Interface: USB.

☆ Support multiple languages and systems.

☆ Widely used in supermarket, mobile payment, industry manufacturing, inventory management.



Application

▅ Supermarket                  ▅ Warehouse

▅ Mobile payment              ▅ Retail chain

▅ Courier                           ▅ Health care



Physical Parameter
Weight ≈160g(without cable)
Dimension L175mm * W72mm * H100mm
Interface Type USB
Communication way USB(USB-KBW,USB-COM)
Power supply DC 5V@280mA(work)
Performance
Scan type CMOS
Light source Red light 625±10nm(aim),5600K LEDs(lighting)
CPU 32-bit
Resolution 640*480
Resolution ≥5mil/0.127mm(PCS90%,Code 39)
Scan tolerance 25CM/S
Depth of field 10mm-500mm
Scan mode Manual
Scan angle Roll 360°, Pitch ±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark , indoor natural light
Symbologies 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128,Code 39,Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5, Industrial 2 of 5,Standard 2 of 5,Codabar(NW-7),MSI Plessey,RSS,China Post,etc.
2D: QR Code, Data Matrix,PDF417,Maxicode,Aztec,Hanxin,Grid Matrix,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5m
Transport vibration Test 10H@125RPM
Depth of field
4MIL 20-80mm (PCS90%,Code 39)
13MIL 30-210mm (PCS90%,EAN-13)
20MIL 20-200mm (PCS90%,Code 39)
40MIL 150-500mm (PCS90%,Code 39)
20MIL 20-200mm (PCS90%,QR Code)
Accessories list
Data cable USB,connect the scanner to a host device
