1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan

1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan

  • 1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
  • 1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
  • 1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
  • 1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
  • 1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DF3100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Paper carton, 32*18*5*0.15cm,20pcs
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: 1D Fixed Mount Barcode Scanner Dimension: (L)49.2mm * (W)37.5mm * (H)20.0mm
Communication Mode: USB(USB-KBW、USB-COM),RS232 Power Supply: DC 5V@80mA(work)
Scan Type: Linear CCD CPU: 32-bit
Optical Resolution: 2500 Resolution: ≥3mil/0.076mm(PCS90%,Code 39)
Decoding Speed: 300times/s Depth Of Field: 30mm-700mm
Scan Mode: Manual ,Continuous, Auto Sense, Flashing
High Light:

industrial fixed barcode scanner

,

mountable barcode scanner

1D CCD Fixed Mount Barcode Scanner Module Embedded in OEM Machine



Features

1.Simple product structure, widely applied in payment kiosk and OEM  machines.

2. Read all mainstream 1D barcodes.

3. High-performance processor, fast decoding. (3mil)

4. Interface: USB, RS232

5.Support multiple systems and languages.



DF3100 is a high quality fixed mount scanner and embedded module with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, read the paper, goods, screens, other media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various self-service machines, industrial lines, etc.



It is widely used in Self-service terminals,Queuing calling equipment,Lottery machines,Medical research,Lockers etc.

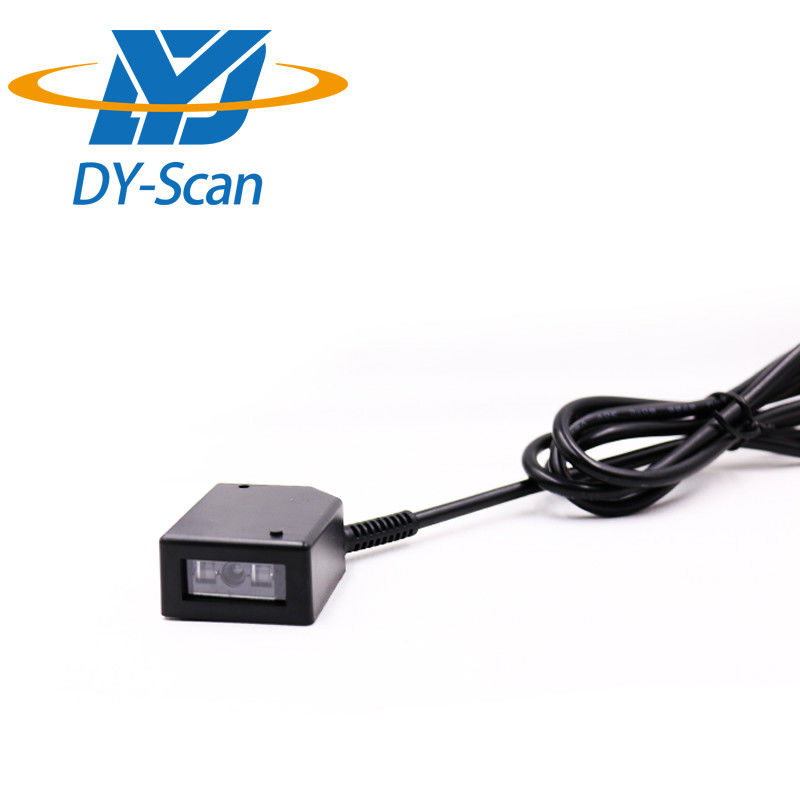

Product picture:

1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan 0

1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan 1

1D CCD Fixed Mount Barcode Scanner Module Embedded In OEM Machine Long Lifespan 2



Physical Parameter
Weight ≈80g(USB)
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Communication Mode USB(USB-KBW,USB-COM),RS232
Power Supply DC 5V@80mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light,625±10nm
CPU 32-bit
Optical Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto sense, flashing
Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5 meters
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,EAN-13)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)
Accessories List
Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).



FAQ:



Q:Can i make a trial or sample order before ordering?
A: Yes,sure.

Q: How can i print my logo ? how much ?
A: Firstly,pls inform us your logo and printing position expected,then we will make sample for your confirmation shortly The cost depends on some factors.

Q:Can we have our logo or company name to be printed on the product or package?
A:Yes, printer with logo or company name is acceptable, it will be accomplished by silk printing, please contact us for more details.

Q: How about your warranty?
A: The buyer will enjoy 1 year warranty since buying from us

Q: If the scanner not working ,how can we do ?
A: pls contact and inform related sales representative with the issues you have.
