|Place of Origin:||China|
|Brand Name:||Dingyu/ DY SCAN|
|Certification:||CE, ROHS, FCC, IEC, FDA|
|Minimum Order Quantity:||1|
|Packaging Details:||220mm L * 100mm W * H80mm|
|Delivery Time:||3-7 days|
|Payment Terms:||T/T, Paypal, Alibaba|
|Dimension:||L150mm * W70mm * H95mm||Interface Type:||USB|
|Communication Method:||Wireless 2.4GHz,USB||Scan Type:||Linear CCD|
cmos barcode scanner,
usb handheld scanner

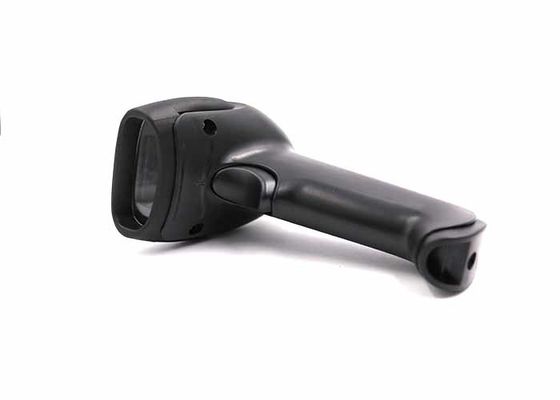

2.4G Handheld 1D Wireless Barcode Scanner for Android, IOS, Windows 32bit CPU
DS5100G is a high-performance 1D barcode scanner with leading CCD image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily. (3mil)
☆ Interface: USB, wireless 2.4G.
☆ Dual mode: wired, wireless, Ultra-low power consumption, continuous working time 20h.
☆Transmission distance 200m, intelligent automatic connection when it’s beyond range, not manual setting.
☆Widely used in supermarket, warehouse, mobile payment, chain stores.
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
|Dimension||L150mm * W70mm * H95mm|
|Communication method||wireless 2.4GHz,USB|
|Power supply||DC 5V@100mA(work)|
|Scan type||Linear CCD|
|Light source||Visible red light,625±10nm|
|Decoding speed||300 times/s|
|Depth of field||10mm-600mm|
|Scan mode||Manual, Continuous, Auto sense|
|Scan angle||Roll±30°, Pitch±60°, Skew±60°(PCS90%,Code 39,10mil/0.25mm)|
|Print contrast signal||≥20%|
|Ambient light||Indoor natural light|
|Wireless communication mode||Synchronization , asynchronous , storage|
|Wireless transmission distance||2.4GHz,200meters(Open distance)|
|Storage||512K(over 5000Product code)|
|Battery charging time||About 6.5 hours|
|Continuous working time||≥20hours|
|Symbologies||UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.|
|Operating temperature||0℃ to 50℃|
|Storage temperature||-20℃ to 60℃|
|Humidity||5% to 95%(non-condensing)|
|Transport vibration Test||10H@125RPM|
|Depth of field|
|3MIL||60-100mm (PCS90%,Code 39)|
|20MIL||10-430mm (PCS90%,Code 39)|
|40MIL||110-600mm (PCS90%,Code 39)|
|Data cable(charging cable)||USB, connect the scanner to a host device and charging.|
|Receiver||Used to receive and transmit scanner data.|
1. What's the shipping way ?
A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.
2. What's the payment way ?
A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.
3. How about your product warranty ?
A: Our officially promised warranty time is 1 years after delivery.
4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.
With well packed carton by foam and plastic film to advoid goods damage.
5. where I can get the support ?
A: We support you technically 24h
