Place of Origin: | China |
Brand Name: | Dingyu/ DY SCAN |
Certification: | CE, ROHS, FCC, IEC, FDA |
Model Number: | DP8500 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Delivery Time: | 3-7 days |
Payment Terms: | T/T, Paypal, Alibaba |
Supply Ability: | 10000pcs/month |
Scan Type: | Cmos | CPU: | 32bit |
---|---|---|---|
Color: | Black | Decoding Speed: | 10cm/s |
Drop Height: | 1.5m | Interface Type: | USB, RS232 |
Depth Of Field: | 0-350mm | Scan Mode: | Auto Sense |
Print Contrast Signal: | ≥25% | Size: | 92.33mm L *84.74mm W * 124.61mm H |
Highlight: | laser handheld scanner,omni directional barcode reader |

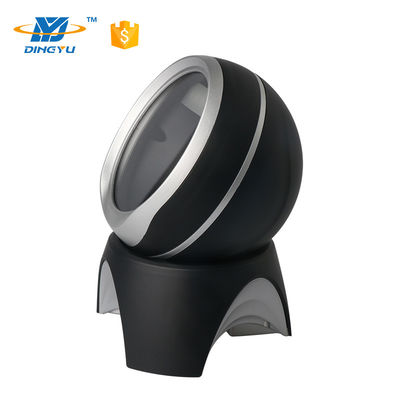

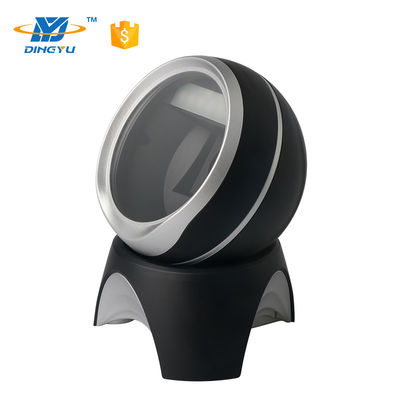

Made in China Stationary Black 2D Desktop Supermarket High Speed Barcode Scanner
Product Description
DP8500 is a high performance barcode platform with leading CMOS image recognition technology and intelligent image recognition system.
Large window design, large viewing angle.
It can scan universal 1D, 2D codes, read the paper, goods, screens, other media barcodes.
Parameter
Physical Parameter | |
Weight | 190g ( Without cable) |
Dimension | 92.33mm L *84.74mm W * 124.61mm H |
Interface type | USB, RS232 |
Communication way | TTL-232 , USB (HID-KBW,USB-COM) |
Power supply | DC 5V@470mA(work) |
Performance | |
Scan type | CMOS |
Light source | Aiming: 617 nm LED ; illumination:6500K LED |
CPU | 32-bit |
Optical Resolution | 640*480 |
Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
Scan speed | 10cm/s |
Depth of field | 0-350mm |
Scan mode | Auto sense |
Scan angle | Roll360°, Pitch±45°, Skew±32° |
Print contrast signal | ≥25% |
Ambient light | Dark, Indoor natural light |
Symbologies |
1D: Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial,Straight2of5 ,IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
Environmental | |
Operating temperature | -20℃ to 50℃ |
Storage temperature | -40℃ to 70℃ |
Humidity | 5% to 95%(non-condensing) |
Drop Height | 1.2m |
Transport vibration Test | 10H@125RPM |
Accessories List | |
Data cable | USB cable, used to connect the DP8500 and the information receiving host. |
RS232 cable, used to connect the DP8500 and the information receiving host, with USB supply cable. |
Our Services
1. Your inquiry related to our products or price will be replied in 24 hours.
2. Experienced staff to answer all your inquiries in English.
3. Protection of your sales area, ideas of design and all your private information.
4. Engineers can help you to solve any technical problems.
5. 1 year warranty.
