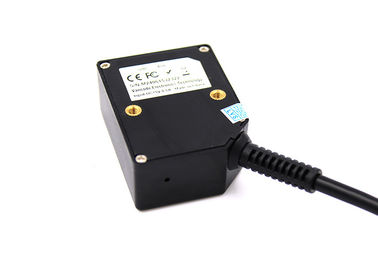

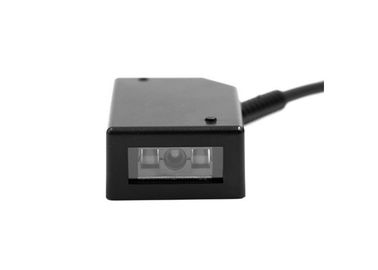

Portable 1D Barcode Scan Engine USB/RS232 Interface Automatic Sense

Portable 1D Barcode Scan Engine USB/RS232 Interface Automatic Sense

  • Portable 1D Barcode Scan Engine USB/RS232 Interface Automatic Sense
  • Portable 1D Barcode Scan Engine USB/RS232 Interface Automatic Sense
Portable 1D Barcode Scan Engine USB/RS232 Interface Automatic Sense
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DF3100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Interface: USB Or RS232 Color: Black
Weight: 80g Scan Type: Linear CCD
Resolution: 2500 Decoding Speed: 300times/s
Depth Of Field: 30mm-700mm
High Light:

industrial fixed barcode scanner

,

mountable barcode scanner

300 scan-rate per second 1D fixed scanner in various major barcodes


Product Description

DF3100 is a high performance fixed mount scanner with leading CCD image recognition technology and intelligent image recognition system. It can scan universal 1D codes, read the paper, goods, screens, other media barcodes. Compact design, can be easily embedded in all kinds of equipment. Widely used in various self-service machines, industrial lines, etc.



Features

☆ Simple structure, widely used in self-service selling machines.

☆ Read all mainstream 1D barcodes in the market easily.

☆ High-performance processor, fast decoding. (3mil)

☆ Interface: USB, RS232

☆ Support multiple systems and languages.



Application



▅ Lockers                                     ▅ Mobile coupons, tickets

▅ Medical research                       ▅ Mobile payment barcode scanning

▅ Lottery machines                       ▅ Self-service terminals

▅ Queuing calling equipment        ▅ Self-service vending machines

▅ Microcontroller development



Physical Parameter
Weight ≈80g(USB)
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Interface Type USB ,DB9
Communication Mode USB(USB-KBW,USB-COM),RS232
Power Supply DC 5V@80mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto sense, flashing
Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark , indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5 meters
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,EAN-13)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)
Accessories List
Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).





Packing & Delivery


Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)




FAQ



1. What's the shipping way ?

A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.



2. What's the payment way ?

A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.



3. How about your product warranty ?

A: Our officially promised warranty time is 1 years after delivery.



4.Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

With well packed carton by foam and plastic film to advoid goods damage.



5.where I can get the support ?

A: We support you technically 24h
