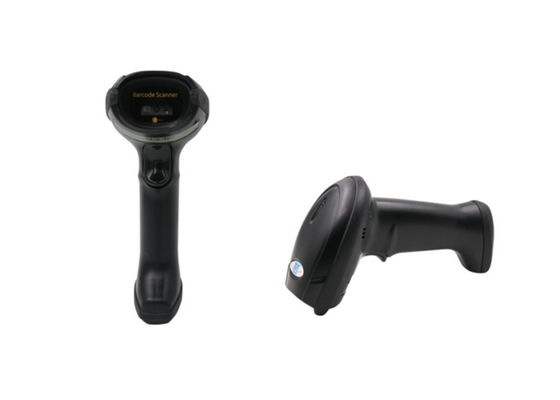

DS6203 USB 2D Barcode Scanner

DS6203 USB 2D Barcode Scanner

  • DS6203 USB 2D Barcode Scanner
  • DS6203 USB 2D Barcode Scanner
DS6203 USB 2D Barcode Scanner
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DS6203
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: L220mm * W100mm * H80mm
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Weight: 160g Dimension: L175mm * W72mm * H100mm
Communication Method: USB Power Supply: DC 5V@220mA
Scan Type: CMOS CPU: 32-bit
Resolution: ≥3mil/0.076mm(PCS90%,Code 39) Decoding Speed: 60cm/s
Depth Of Field: 0mm-600mm Print Contrast Signal: ≥20%
Drop Height: 1.8m
High Light:

60cm/s usb barcode scanner


60cm/s 2D Barcode Scanner


USB 2D Barcode Scanner

DS6203 USB 2D Barcode Scanner


High Resolution Hand Held Products Barcode Scanner , USB 2D Laser CMOS Barcode Scanner DS6203


Product Description

DS6203 is a high-performance 2D barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in industrial manufacturing, inventory.



1. Industrial design, widely used in complex environment, industrial manufacturing, inventory.

2. Read all mainstream 1D 2Dbarcodes in the market easily. (3mil)

3. Interface: USB.

4. Laser cross light, ensure that scanning the barcode correctly.

5. Support customization and secondary development.



▅ Supermarket           ▅ Retail chain

▅ Courier                   ▅ Industrial manufacturing.


Physical Parameter
Weight 160g(without cable)
Dimension L175mm * W72mm * H100mm
Communication method USB
Power supply DC 5V@220mA(work)
Scan type CMOS
Light source Laser aim, Visible red light,625±10nm leds
CPU 32-bit
Resolution 725*480
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 60cm/s
Depth of field 0mm-600mm
Scan mode Manual, Auto sense
Scan angle Roll±360°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print contrast signal ≥20%
Ambient light Dark,Indoor natural light

1D: UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128,Code 39,Code 93,Code 11, Interleaved 2 of 5,ITF-6, ITF-14, Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5, Codabar( NW-7), Plessey, MSI,RSS,etc.

2D: QR code, mini QR code, PDF417, Micro PDF417, Data matrix, Hanxin code, etc.

Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.8m
Transport vibration Test 10H@125RPM
Depth of field
3MIL 60-100mm (PCS90%,Code 39)
13MIL 10-320mm (PCS90%, EAN-13)
20MIL 10-430mm (PCS90%,Code 39)
40MIL 110-600mm (PCS90%,Code 39)
Accessories list
Data cable(charging cable) USB, connect the scanner to a host device and charging.



Our Services

- OEM & ODM: We have professional design team(OEM & ODM available)

- Quality Inspection: Each product passed strict QC 100% high quality guaranteed.

- Excellent Customer Service: We have excellent team to offer quick and considerate services.

- Certification: CE, ROHS, FCC, IEC Certification

- Export packing: Standard cartoon package, safe packing
