Reliable IP42 Fixed Mount Scanner 300 Scan Rate High Sensitive Image Sensor DF3200

Reliable IP42 Fixed Mount Scanner 300 Scan Rate High Sensitive Image Sensor DF3200

  • Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200
  • Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200
  • Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200
  • Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200
Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200
Product Details:
Place of Origin: China
Brand Name: Dingyu/ DY SCAN
Certification: CE, ROHS, FCC, IEC, FDA
Model Number: DF3200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: 188mm L * 95mm W * 40mm H
Delivery Time: 3-7 days
Payment Terms: T/T, Paypal, Alibaba
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Decoding Speed: 300times/s Operating Temperature: -20℃ To 50℃
Resolution: ≥3mil/0.076mm(PCS90%,Code 39) Ambient Light: Dark Environment, Indoor Natural Light
Scan Mode: Manual ,Continuous, Auto Sense, Flashing Humidity: 5% To 95%(non-condensing)
High Light:

industrial fixed barcode scanner

,

mountable barcode scanner

Reliable IP42 Fixed Mount Scanner 300 Scan Rate High Sensitive Image Sensor DF3200

Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 0


Product Description

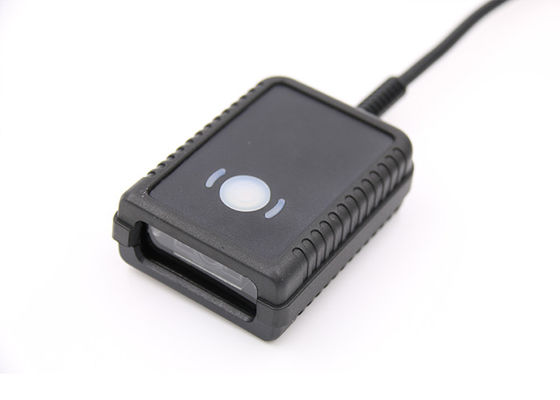

DF3200 is a long-range CCD bar code scanner with high sensitive liner image sensor.



As remote-operation ability 0--10,000 LUX ambient light resistance.



300 scan-rate per second and aiding in various major barcodes, hand-on software-programming function.



DF3200 is your best choice of CCD type bar code scanner to be suitable for application where needs a high performance and reliable operation.



Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 1



Features



1. high sensitive image sensor(can read on electronic screen)



2. good penetrability barcode scanner which can read 1d barcodes even the bar codes covered by glass



3. 300 scans/sec high speed



4. programmable, light weight and easy to use



5. suitable for OEM devices like payment kiosk, car parking system, etc.



6 Mini Housing Design



Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 2





Parameter



Physical Parameter
Weight ≈80g(USB)
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Interface Type USB ,DB9
Communication Mode USB(USB-KBW,USB-COM),RS232
Power Supply DC 5V@80mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto sense, flashing
Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5 meters
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,EAN-13)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)
Accessories List
Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).


Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 3



Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 4

Reliable IP42 Fixed Mount Scanner 300 Scan Rate  High Sensitive Image Sensor DF3200 5



FAQ



1. What's the shipping way ?

A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.



2. What's the payment way ?

A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.



3. How about your product warranty ?

A: Our officially promised warranty time is 1 years after delivery.



4. Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

With well packed carton by foam and plastic film to advoid goods damage.



5.where I can get the support ?

A: We support you technically 24h
