Place of Origin: | China |
Brand Name: | DYscan |
Certification: | CE ROHS FCC IEC |
Model Number: | DP8501 |
Minimum Order Quantity: | 2pcs |
---|---|
Price: | Negotiable |
Packaging Details: | 54*34*34CM/30pcs /Carton |
Delivery Time: | 5-7days |
Payment Terms: | T/T, Western Union,PAYPAL |
Supply Ability: | 100000pcs/month |
Scan Type: | CMOS | Resolution: | 1D:≥3mil,2D:≥8.7mil @PCS90% |
---|---|---|---|
Decoding Speed: | 100CM/S | Depth Of Field: | 3mil:55~100mm,13mil:55~350mm |
Scan Mode: | Continuous | Print Contrast Signal: | 20%PCS |
Symbologies: | 1D 2D | Dimension: | 103mm L × 105mm W × 150mm H |
Interface Type: | USB、RS232 | Weight: | 265g(without Cable) |
Highlight: | Omnidirectional QR Barcode Scanner,Buzzer Indicator QR Barcode Scanner,CMOS Automatic USB Barcode Reade |

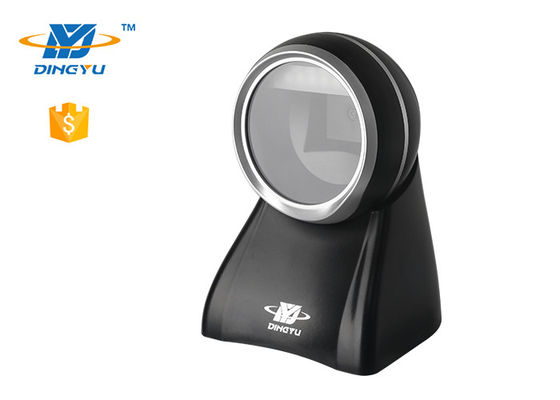

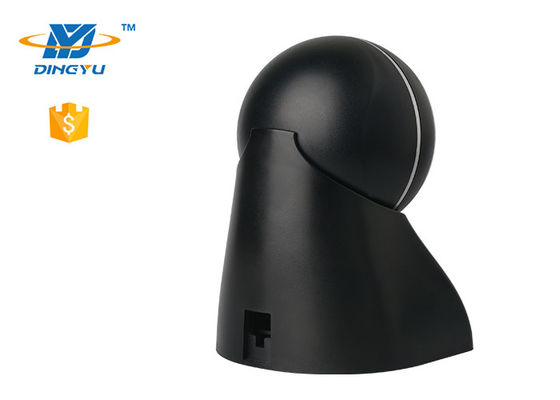

2D Portable Barcode Scanner
DP8501 is an omnidirectional 2D desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in large supermarkets, restaurant, chain stores, and grocery stores.
☆ Fashionable design, auto sense scanning.
☆ 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.
Performance
Scan Type | CMOS | |
Light Source | Red LED | |
CPU | 32-bit | |
Resolution | 1280*800 | |
Resolution | 1D:≥3mil,2D:≥8.7mil @PCS90% | |
Decoding speed | 100CM/S | |
Depth of field | 3mil:55~100mm,13mil:55~350mm | |
Scan Mode | Continuous | |
Indicator | buzzer | |
Scan angle | Roll:±360°,Pitch:±70°or greater,Yaw:±65°or greater) | |
View angle | Horizontal 62°× Vertical 41° | |
Print Contrast Signal | 20%PCS | |
Ambient Light | Dark environment, indoor natural light | |
Symbologies |
|
Physical Parameter
Weight | 265g(without cable) |
Dimension | 103mm L × 105mm W × 150mm H |
Communication Mode |
USB-KBW, USB-COM (Need driver),RS232
|
Interface Type | USB, RS232 |
Power Supply |
DC 5V@290mA(work) |
Environmental
Operating temperature | -20℃ to 55℃ |
Storage temperature | -20℃ to 60℃ |
Humidity | 5% to 95%(non-condensing) |
Drop Height | 1.2m |
Transport Vibration Test | 10H@125RPM |
Detail Image
